Single Preset Counter

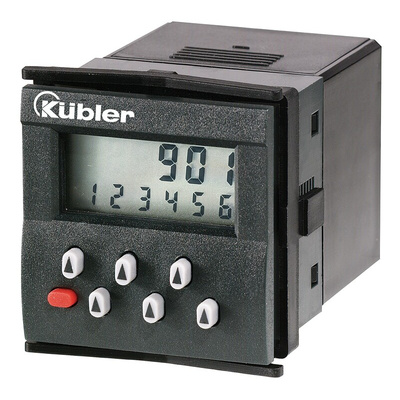

Type 901 is a simple battery-powered preset pulse counter/timer with different input options.
Preset Counter with 6-digit, 2-line LCD display
Lithium battery powered presettable pulse counter
Display shows count value, preset value and switching condition of relay
Comfortable programming of preset: one pushbutton is attributed to each digit
Low battery indication, battery is user exchangable
Input versions are:
Bi-dir. Optocoupler - stock no. 243-639
12-250 Vac/dc - stock no. 915-5950
NPN input - stock no. 915-5954
Approvals
UL recognised component for Canada and US
Kubler Counter
The Kubler CODIX 901 series digital counter is a single preset battery-powered preset pulse counter and panel mount device. This counter has a voltage input and relays output device. It also has a 6-digit LCD display and supply voltage rating range between 12VAC/DC and 250VAC/DC with NPN input. It is used to display the actual and set-point value, relay status and active time measurement. This counter has a maximum count frequency of 30Hz.
Features and Benefits
Easy to programme
Simple preset entry
one key per decade
Plug-in screw terminals
Clock function
Lithium battery powered presettable pulse counter
Low battery indication, battery is user exchangeable
Data protection by replaceable lithium batteries
Replacement for electromechanical preset counters
Front dimensions is 48mm x 48mm
Measurement ranges between 0 and 999999
NC or NO function can be programed
Operating temperature ranges between -20°C and 65°C
Applications
Industrial counting
Control and monitoring systems
Manufacturing assembly lines
Certifications
CULus
E128604
EN 55011 class B
EN 61000-6-2
EN 61010-1
EN 61326-1
Kubler Panel Mounting 48 x 48 - Electronic Counters
Range of Resettable Counters / Timers / Rate Meters. All have 45 x 45mm panel cut out and are sealed to IP65 (front fascia). Data retention greater than 10 years.
Техническая спецификация
Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4Datasheet - 6.901.010.850UN38.3 Lithium Battery Test Summary| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
