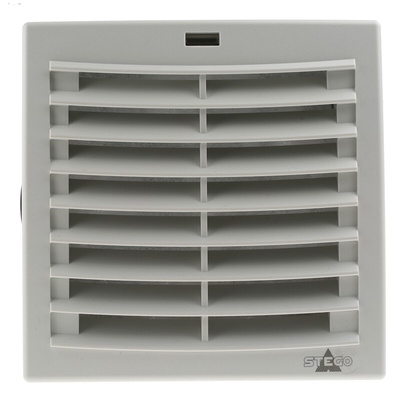

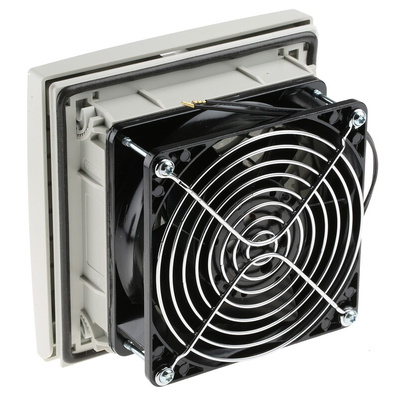

01871.0-30, STEGO Filter Fan152 x 152mm Face Dimensions, 42m³/h, AC Operation, 230 V ac, IP54, Вентилятор

9159980
Номер производителя: 01871.0-30Производитель: STEGO
Цена за шт.
25605.00 руб. (С НДС) *
Количество 5+ 12+ 25+ 50+
Цена 23556.00 руб. 21507.00 руб. 19461.00 руб. 17412.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Stego Elektrotechnik Filter Fan

The Stego Elektrotechnik filter fan provides a filtered airflow of 42m³/h and has a supply voltage rating of 230VAC. This fan is designed to optimise climate efficiency within enclosures and cabinets containing electronic/electrical components. The electronic components generate heat and these units disperse that heat with cooler, filtered air from outside the enclosure. By reducing the heat inside the enclosure, this fan improves the performance and reliability of the electronic items and ultimately the cost is reduced. It has a face height of 152mm, face width of 152mm and installation depth of 66mm.

Features and Benefits

New air-flap outlet technology for high airflow
Easy mounting
Single filter mat system design
Filter fan located in the lower part of the enclosure draws cleaner, cooler air into the enclosure
FPI system consists of a filter fan and exhaust filter (ordered separately)
Designed for indoor use

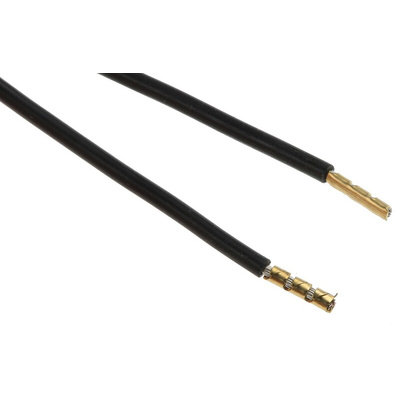

Wire termination type

Certifications

IP54 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfSystem Drawings
pdfDatasheet
Входной ток:
120мА
Конфигурация:
Прямоугольный
Лицевая высота:
152мм
Лицевые размеры:
152 x 152мм
Монтажная глубина:
66мм
Напряжение питания:
230 В перем. тока
Операции переменного или постоянного тока:
Переменный ток
Рейтинг входной мощности:
19Вт
Свободный поток воздуха:
52м³/ч
Серия:
Filter Fan Plus FPI
Специальные функции:
Easy Mounting, New Air Flap Outlet Technology for High Airflow, One Filter Mat, Ratchet Mechanism is Used for Mounting and Provides High Stability and Tightness
Степень защиты IP:
IP54
Тип выводов:
Провод
Тип подшипника:
Шариковый
Уровень шума:
49дБ(A)
Фильтрация воздушного потока:
42м³/ч
Ширина рабочей поверхности:
152мм
