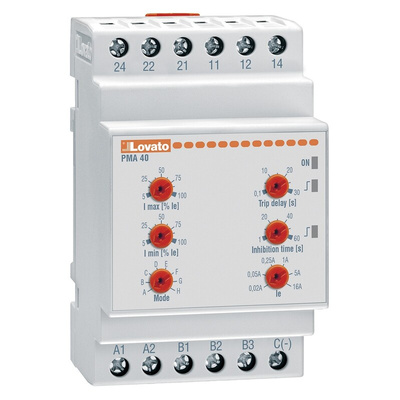

PMA40240, Lovato Current Monitoring Relay, 1 Phase, SPDT, DIN Rail, Реле контроля

Current Monitoring Relay AC/DC Single Phase

The Lovato range of current monitoring relays are for AC/DC minimum and maximum current control with AC/DC multi-voltage auxiliary power supply and are single phase. You are offered with the current monitoring relays a direct connection of up to maximum of 16A or by a current transformer. The Lovato current relays give you excellent tripping accuracy and TRMS current measurements. You have a choice of one or two relay outputs with one changeover contact SPDT and all have an automatic or manual reset.

Modular DIN 43880 housing
Excellent tripping accuracy
IEC protection: IP40 on front and only when placed in an IP40 enclosure or control board
IP20 at terminals
Single phase system
AC/DC maximum and minimum current control
Delayed trip
Auxiliary AC/DC power supply
Automatic or manual reset TRMS current measurements
Resetting and inhibition input

Single Phase Current Monitoring Relays

Approvals

EAC; UL Listed for USA and Canada (cULus File E93601) as auxiliary devices.
Compliant with standards: IES/EN 60255-5
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CSA C22.2 n° 14.
