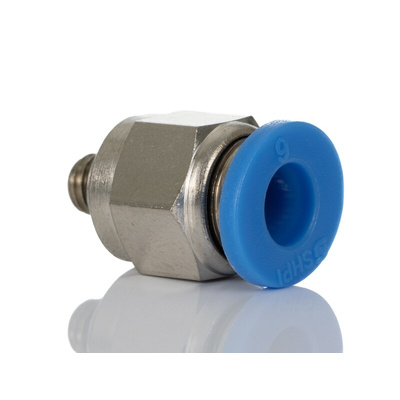

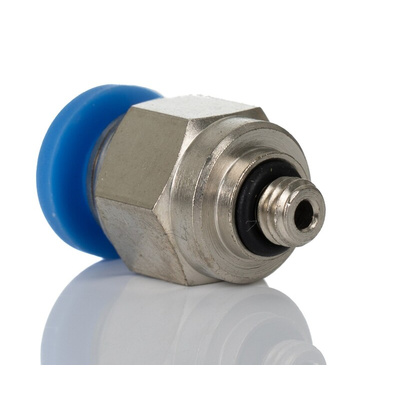

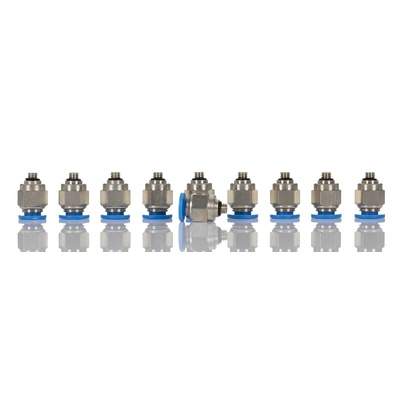

RS PRO Straight Threaded Adaptor, M5 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Straight Threaded Adaptor to M5 to Push In 6 mm 10 bar

Use one of these RS PRO straight threaded adaptors when you need to connect piping in your pneumatic system. They have a compact, six-angle wrench design and are suitable for use with both polyurethane and nylon tubing.
These adaptors come with a push-in fitting, which means they're quick to install and easy to remove, even in tight spaces. The nickel-plated brass construction gives you a strong and corrosion-resistant connection with minimal contamination for a longer service life. You can use these components in a wide range of compressed air applications thanks to their broad operating temperature range of 0°C to +60°C and their maximum operating pressure of 10 bar. You'll often find these adaptors used for spray coating, pressure cleaning and vacuum packing equipment.

Features and Benefits

• Straight threaded adaptor pneumatic fitting type


• Body made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an M5 connection


• Connector B is a push-in 6 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type

RS Pro Datasheet
