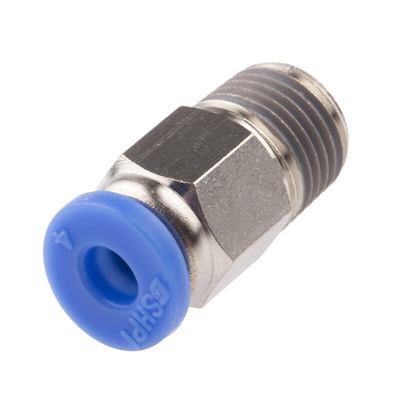

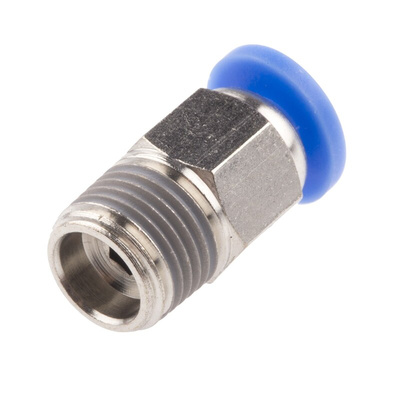

RS PRO Straight Threaded Adaptor, R 1/8 Male to Push In 4 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Straight Threaded Adaptor to R 1/8 Male to Push In 4 mm 10 bar

When you need a simple way to connect piping in your pneumatic system, choose one of these RS PRO straight threaded adaptors. They have a compact, six-angle wrench design and are easy to install and remove in tight spaces thanks to their push-in fitting.
The versatile adaptors are compatible with both polyurethane and nylon tubing. They're made from nickel-plated brass for strength and resistance to corrosion with minimal contamination, meaning they'll last a long time.
You can use these adaptors for a variety of compressed air applications, as they're suitable for use at temperatures between 0°C and +60°C and pressures up to 10 bar. They're commonly used for spray coating, pressure cleaning and vacuum packing equipment.

Features and Benefits

• Straight threaded adaptor pneumatic fitting type


• Body made from nickel-plated brass


• Thread made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/8 male connection


• Connector B is a push-in 4 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type

RS Pro Datasheet
