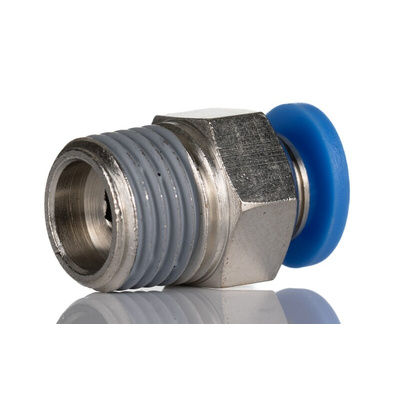

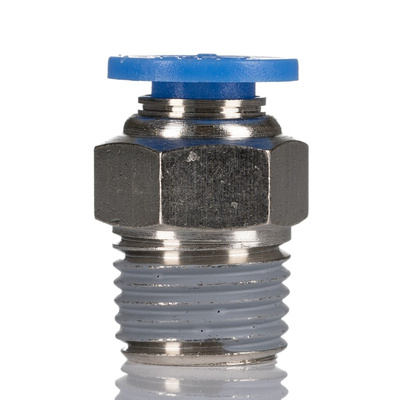

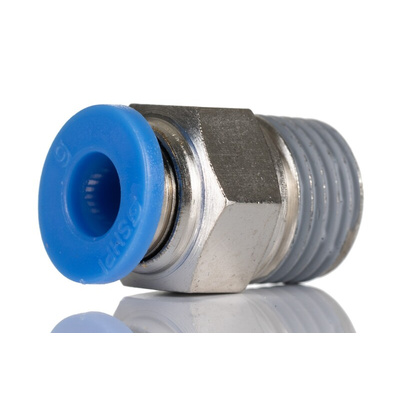

RS PRO Straight Threaded Adaptor, R 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Straight Threaded Adaptor to R 1/8 Male to Push In 6 mm 10 bar

For a simple and reliable way to connect piping in your pneumatic system, use these RS PRO straight threaded adaptors. They have a push-in fitting and a compact, six-angle wrench design that makes them easy to install and remove even in tight spaces.
Thanks to their nickel-plated brass construction, these adaptors are durable and corrosion-resistant for a long service life. You can use them with both polyurethane and nylon tubing for added flexibility.
The adaptors can be used in a wide range of compressed air applications, as they have a broad operating temperature range of 0°C to +60°C and can withstand pressures of up to 10 bar. They're often found in vacuum packing, spray coating and pressure cleaning equipment.

Features and Benefits

• Straight threaded adaptor pneumatic fitting type


• Body made from nickel-plated brass


• Thread made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/8 male connection


• Connector B is a push-in 6 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type
