RS PRO Straight Threaded Adaptor, R 1/4 to Push In 10 mm, Threaded-to-Tube Connection Style, Переходник

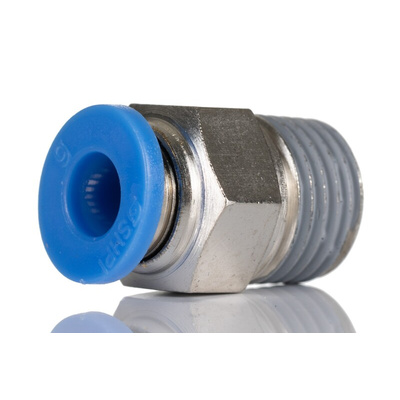

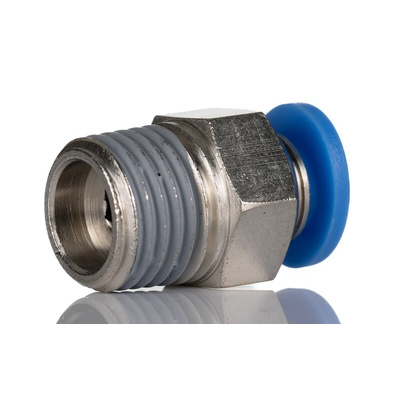

RS PRO Straight Threaded Adaptor to R 1/4 to Push In 10 mm 10 bar

These straight threaded adaptors from RS PRO let you quickly and easily connect piping in your pneumatic system. They have compact dimensions and a push-in fitting for simple installation in areas where space is restricted.
The adaptors are suitable for use with either polyurethane or nylon tubing. You can also use them in a range of environments thanks to their wide operating temperature range of 0°C to +60°C. They're highly durable and resistant to corrosion as they're made from nickel-plated brass, so they offer a long service life. You can use these adaptors for a variety of compressed air applications. You'll often find these adaptors used for spray coating, pressure cleaning and vacuum packing equipment.

Features and Benefits

• Straight threaded adaptor pneumatic fitting type


• Body made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/4 connection


• Connector B is a push-in 10 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type
