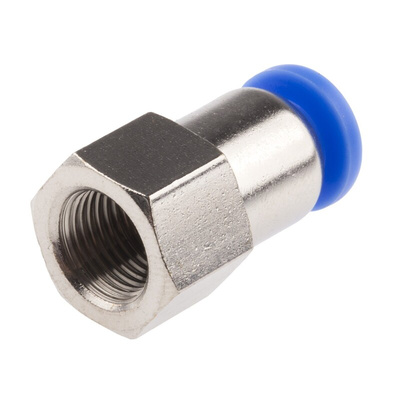

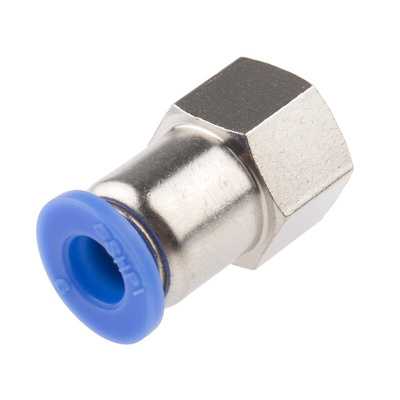

RS PRO Straight Threaded Adaptor, R 1/8 to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Straight Threaded Adaptor to R 1/8 to Push In 6 mm 10 bar

These straight threaded adaptors from the RS PRO range offer an easy and reliable way to connect piping in your pneumatic system. They have a compact, six-angle wrench design and a push-in fitting, making them quick to install in tight spaces.
As they're made from nickel-plated brass, they're corrosion-resistant and highly durable, meaning they'll last a long time. They're suitable for use with both polyurethane and nylon tubing, so they're a versatile option.
A wide operating temperature range of 0°C to +60°C and a maximum operating pressure of 10 bar means you can use these adaptors for a broad range of compressed air applications. Common uses of these adaptors include spray coating, vacuum packing and pressure cleaning equipment.

Features and Benefits

• Straight threaded adaptor pneumatic fitting type


• Body made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/8 connection


• Connector B is a push-in 6 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type

Datasheet
