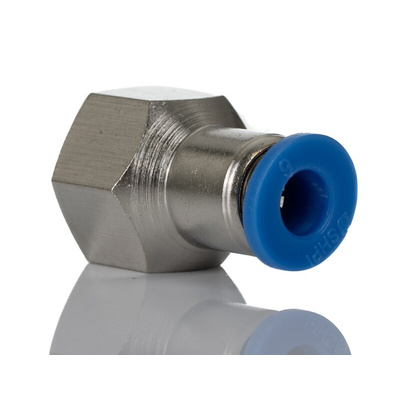

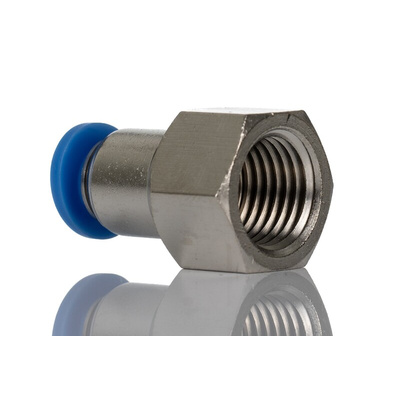

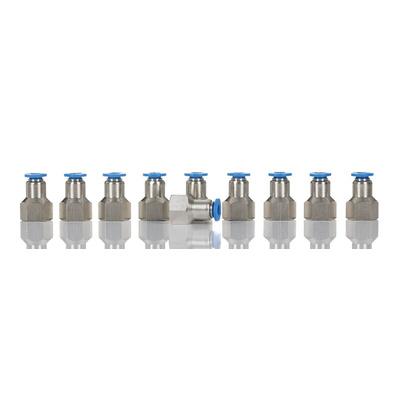

RS PRO Straight Threaded Adaptor, R 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style, Переходник

RS PRO Straight Threaded Adaptor to R 1/4 Female to Push In 6 mm 10 bar

These straight adaptors from RS PRO are designed for connecting piping in a pneumatic system. Their compact, six-angle wrench design and push-in fitting allow you to attach and remove components quickly and easily, even when you're short on space.
These adaptors are made from nickel-plated brass, which makes them extremely corrosion-resistant and hardwearing. The material also offers some protection against contaminants, so you can expect a long operating life. You can use these units with both polyurethane and nylon tubing.
The adaptors have a maximum operating pressure range of 10 bar and can be used at temperatures ranging from 0°C to +60°C. This versatility makes them suitable for a wide variety of compressed air applications. These types of fittings are typically found in spray coating, vacuum packing and pressure cleaning applications.

Features and Benefits

• Body and thread made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/4 female connection


• Connector B is a push-in 6 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Inline mounting type


• Straight threaded adaptor pneumatic fitting type
