RS PRO Bulkhead Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, Переходник

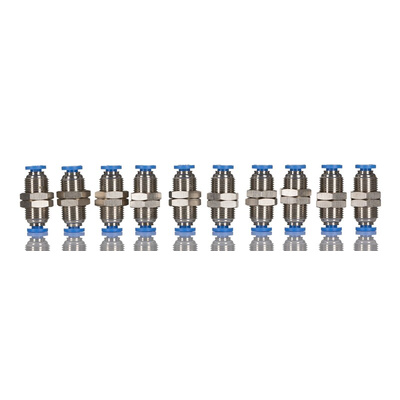

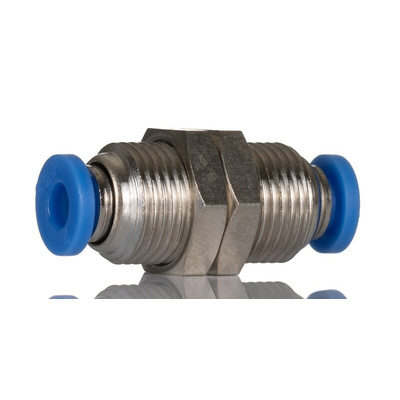

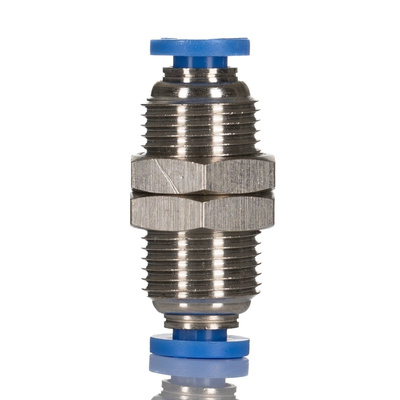

RS PRO Pneumatic Bulkhead Tube-to-Tube Adapter Straight Push-In 4 mm to Push-In 4 mm

When you need an easy-to-use adapter for pneumatic piping, turn to this pneumatic bulkhead tube-to-tube adapter from the RS PRO range. It offers a one-touch push-to-connect configuration for tubes measuring 4 mm in diameter.

The adapter is made from nickel-plated brass for durability and resistance to corrosion. It has a six-angle wrench that's suitable for piping in confined spaces, and the push-on design includes Teflon-coated threads or O-Rings to ensure a tight, secure fit. It's suitable for pressures of up to 10 bar and is safe for operation between temperatures of 0°C and +60°C. It's easy to disconnect by simply pushing the polyoxymethylene (POM) sleeve and removing the tube.

This pneumatic bulkhead tube-to-tube adapter is suitable for nylon or polyurethane tubing. You'll often find it used in gas cylinders, air motors or compressors thanks to its high-pressure capabilities.

Features and Benefits

• Pneumatic bulkhead tube-to-tube adapter
• Push-in 4 mm to push-in 4 mm tube connection
• Straight shape
• Operating temperature range of 0°C to +60°C
• Nickel-plated brass body material
• Maximum operating pressure of 10 bar

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
