RS PRO Bulkhead Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, Переходник

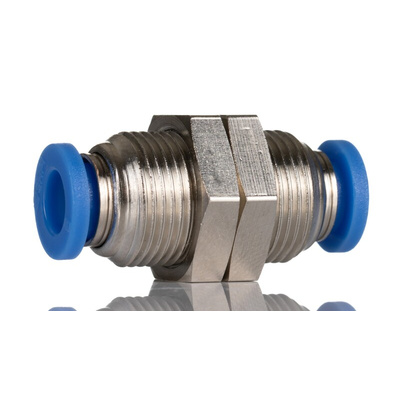

RS PRO Pneumatic Bulkhead Tube-to-Tube Adapter, Straight Push-In 8 mm to Push-In 8 mm

This pneumatic bulkhead tube-to-tube adapter has a one-touch push-to-connect configuration. Designed for use with pneumatic piping, this adapter is commonly found in gas cylinders and for oxygen supplies as it can cope with high pressure.

With its six-angle wrench, the adapter is suited for piping in tight spaces. The nickel-plated brass body protects the adapter from rust and contamination. As it has a maximum operating pressure of 10 bar, it's suited to working with dry air systems. It operates effectively at temperatures up to +60°C. To disconnect the adapter, simply push the polyoxymethylene sleeve and then remove the tube from the fitting. The thermoplastic material provides insulation and abrasion resistance. For easy coupling and to maintain a tight fit, its threads are Teflon-coated.

The adapter has been given the RS PRO seal of approval, ensuring durability and consistency. You'd find it used in air motors or compressors.

Features and Benefits

• Pneumatic bulkhead tube-to-tube adapter
• Push-in 8 mm to push-in 8 mm tube connection
• Straight shape
• Operating temperature range of 0°C to +60°C
• Nickel-plated brass body material
• Maximum operating pressure of 10 bar
