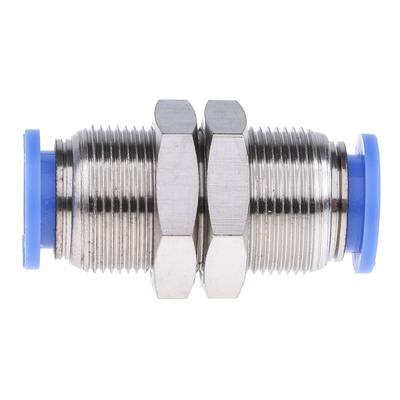

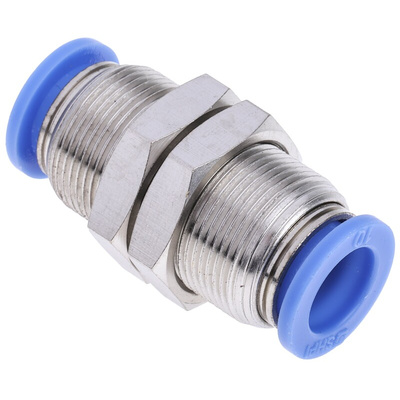

RS PRO Bulkhead Tube-to-Tube Adaptor, Push In 10 mm to Push In 10 mm, Tube-to-Tube Connection Style, Переходник

RS PRO Bulkhead Tube-to-Tube Adaptor to Push In 10 mm to Push In 10 mm 10 bar

These bulkhead adaptors from RS PRO are designed for joining two tubes through a panel to form an airtight connection. They have a straight configuration for non-angled connections and a push-in fitting at both ends for quick and easy installation.
These fittings are supplied in packs of 10. Their bodies are made from nickel-plated brass for good corrosion resistance and high strength, ensuring a long service life. The O-ring on each end creates an airtight seal to prevent leaks.
These adaptors can be used with both polyurethane and nylon tubing. Fittings of this kind are used in pneumatic systems in a wide range of settings, from household plumbing to vacuum packing and pressure cleaning equipment.

Features and Benefits

• Body made from nickel-plated brass


• Tube-to-tube connection style


• Connector A is a push-in 10 mm connection


• Connector B is a push-in 10 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Bulkhead tube-to-tube adaptor pneumatic fitting type
