RS PRO Elbow Threaded Adaptor, R 1/8 Male to Push In 6 mm, Threaded-to-Tube Connection Style, Угловой фитинг

RS PRO Elbow Threaded Adaptor to R 1/8 Male to Push In 6 mm 10 bar

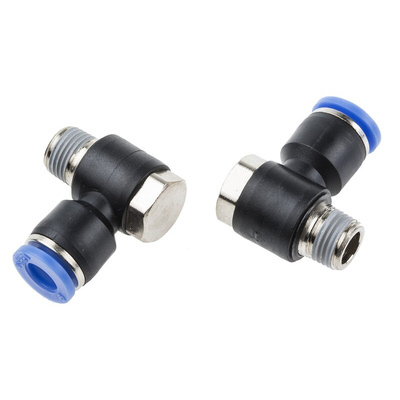

Use this threaded adaptor from RS PRO to connect pneumatic tubing at 90-degree angles. It has an elbow design, which means it's suitable for making angled connections.
The fitting has a threaded connection at one end that's designed to screw onto the matching threads on the length of conduit it's being joined with. It has a push-in connection at the other end, which you can quickly connect to tubing with a simple push for an airtight join. The body of the fitting is made from high-strength POM thermoplastic (polyoxymethylene), which makes it extremely rigid and tough. As this material has a high dimensional stability, this adaptor won't bend or distort under pressure. The thread is made from nickel-plated brass, which is resistant to corrosion.
This fitting is sold in packs of 10. It's been tested by engineers for quality and comes with a 3-year warranty for peace of mind.

Features and Benefits

• Body made from polyoxymethylene


• Thread made from nickel-plated brass


• Threaded-to-tube connection style


• Connector A is an R 1/8 male connection


• Connector B is a push-in 6 mm connection


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C


• Non-swivel connection


• Elbow threaded adaptor pneumatic fitting type
