RS PRO Straight Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, Переходник

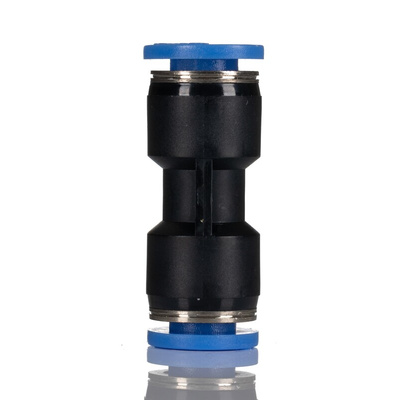

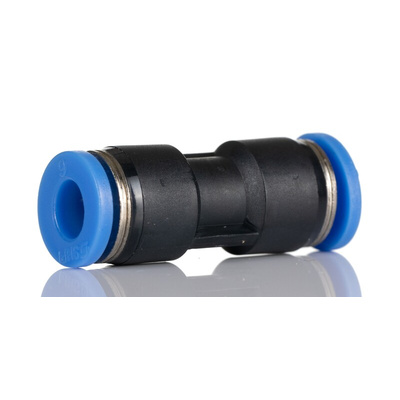

RS PRO Tube-to-Tube Straight Union, Push-In 8 mm to Push-In 8 mm

This straight union tube-to-tube adapter from the RS PRO series is easily configured thanks to its one-touch push-to-connect action. Its high-pressure capability means this connector can be found in gas cylinders and for oxygen supplies.

You can use this component for tightly spaced piping as it has a six-angle wrench. Disconnections are easy, too, as you just push the polyoxymethylene sleeve and then remove the tube from the fitting. Teflon-coated threads provide a secure fit and easy coupling. Its operating pressure of up to 10 bar means it's suitable for dry air systems and a nickel-plated brass body protects it from rust and corrosion. This straight union tube-to-tube adapter operates at temperatures up to +60°C and its thermoplastic material provides insulation and abrasion resistance.

Commonly used in air motors or compressors, this straight union connector has been given the RS PRO seal of approval, to guarantee durability and consistency.

Features and Benefits

• Straight union tube-to-tube adapter
• Push-in 8 mm to push-in 8 mm tube connection
• Straight shape
• Operating temperature range of 0°C to +60°C
• Nickel-plated brass body material
• Maximum operating pressure of 10 bar

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
