RS PRO Tee Tube-to-Tube Adaptor Push In 10 mm, Push In 10 mm to Push In 10 mm, Tube-to-Tube Connection Style, Переходник

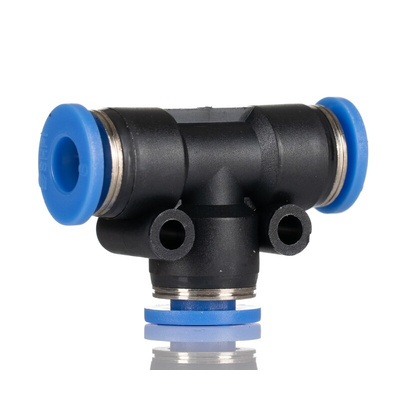

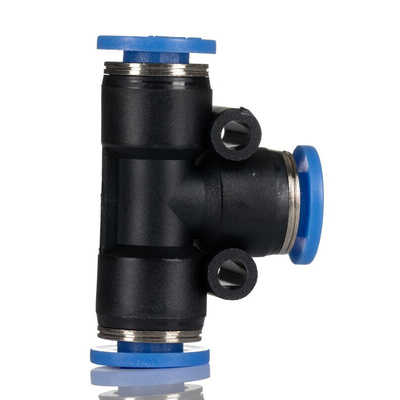

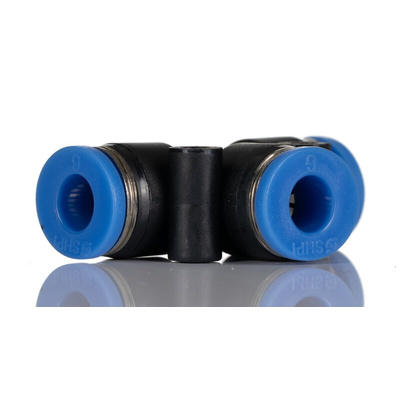

RS PRO Pneumatic Tee Tube-to-Tube Adapter, Push-In 10 mm x Push-In 10 mm x Push-In 10 mm, 10 bar

The RS PRO pneumatic tee tube-to-tube adapter is designed to cope with high pressure. It's used with pneumatic piping, such as oxygen systems or any other type of equipment delivering air.

It's well-suited for use with dry air systems and it has a maximum operating pressure of 10 bar. You can use this fitting in a temperature range of 0°C to +60°C. As it has a six-angle wrench, it's no problem to use in difficult-to-reach spaces. For disconnecting the adapter, all you need to do is push on the polyoxymethylene (POM) sleeve and pull out the tube. POM has great abrasion resistance and insulation properties. For easy, secure joins the threads are treated with Teflon.

You'll find this T-shaped connection used on vacuum systems, instrumentation and other general-purpose applications. As part of the RS PRO range, the build quality is high and it's guaranteed to deliver consistent performance.

Features and Benefits

• Pneumatic tube-to-tube adapter
• Push-in 10 mm to push-in 10 mm tube connection with push-in 10 mm branch tube connection
• Tee shape
• Operating temperature range of 0°C to +60°C
• Polyoxymethylene (POM) body material
• Nickel-plated finish
• Maximum operating pressure of 10 bar

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
