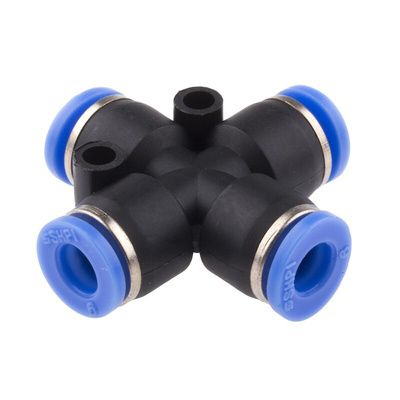

RS PRO Cross Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, Переходник

RS PRO Cross Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, 10 bar

Connect piping in your pneumatic system with this RS PRO cross-shaped adaptor. You can use this part to configure your setup in multiple ways as it has four push-in connections.
The body of this adaptor is made of hard-wearing polyoxymethylene (POM) plastic. For added durability, there's a metal ring around the outside of each push-in connection.
It has an operating temperature range of 0°C to +60°C and a maximum operating pressure of 10 bar, so you can use it for many compressed air applications in a range of environments. You'll find this type of adaptor used in conjunction with vacuum packing, spray coating and pressure cleaning equipment.

Features and Benefits

• Polyoxymethylene (POM) body material


• Tube-to-tube connection style


• Pneumatic cross-shaped fitting


• Connector A, B, C and D are female push-in 6 mm connections


• Nickel-plated finish


• Maximum operating pressure of 10 bar


• Operating temperature range of 0°C to +60°C

RS Pro Datasheet
