RS PRO CVPU Non Return Valve, 4mm Tube Inlet, 4mm Tube Outlet, 0 → 10bar, Клапан

9160934
Производитель: RS PRO
Цена за шт.
1774.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

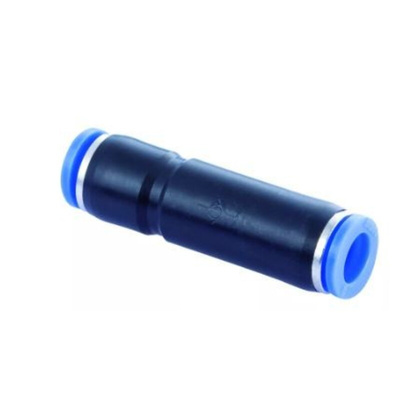

RS PRO CVPU Non Return Valve, 4 mm Tube Inlet, 4 mm Tube Outlet, 0 → 10 bar

Use this non-return valve from the RS PRO range as part of your pneumatic system. It can prevent compressed air from flowing in the opposite direction and maintain a vacuum in low-pressure applications. This valve is suitable for use in systems that operate within a pressure range of 0 to 10 bar.
Each end of the valve has a push-on and screw collar design that makes for a secure, easy-to-install connection. The valve is made of polyoxymethylene for durability and resistance to abrasion.
A non-return valve such as this one is useful in a wide range of applications, including vacuum pumps and pressure gauges. You'll often find it used in the pharmaceutical, textile and food production industries.

Features and Benefits

• Polyoxymethylene body material
• Tube inlet connection size of 4 mm
• Tube outlet connection size of 4 mm
• Minimum operating pressure of 0 bar
• Maximum operating pressure of 10 bar
• Minimum operating temperature of 0°C
• Maximum operating temperature of +60°C

Техническая спецификация
pdfRS PRO Datasheet
Выходное соединение тип:
Трубка
Давление - максимальное рабочее:
10 бар
Диапазон рабочего давления:
0 → 10бар
Корпус - материал:
PBT Resin
Производитель - серия:
CVPU
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
0°C
Рабочее давление - минимальное:
0бар
Соединение входной трубы:
4мм
Соединение выходной трубы:
4мм
Тип входного соединения:
Трубка
