RS PRO CVPU Non Return Valve, 10mm Tube Inlet, 10mm Tube Outlet, 0 → 10bar, Клапан

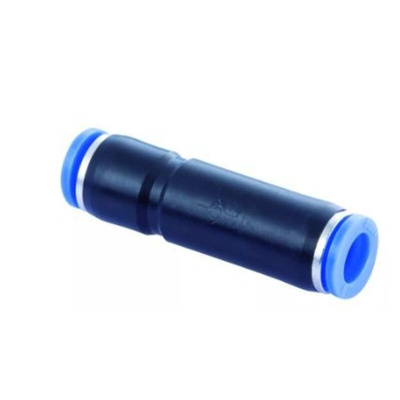

RS PRO CVPU Non Return Valve, 10 mm Tube Inlet, 10 mm Tube Outlet, 0 → 10 bar

To maintain a vacuum in low-pressure applications, choose this non-return valve from RS PRO. It prevents compressed air from flowing in the opposite direction in pneumatic systems that operate within a pressure range of 0 to 10 bar.
The valve is made of POM (polyoxymethylene), a highly durable and abrasion-resistant material. This makes it a good choice for use in harsh environmental conditions. Thanks to the push-on and screw collar design on each end of the valve, it's easy to create a secure connection.
You'll find this non-return valve useful in a variety of applications, from pressure gauges to vacuum pumps. It's often used in the food production, pharmaceutical and textile industries.

Features and Benefits

• PBT Resin body material


• Tube inlet connection size of 10 mm


• Tube outlet connection size of 10 mm


• Minimum operating pressure of 0 bar


• Maximum operating pressure of 10 bar


• Minimum operating temperature of 0°C


• Maximum operating temperature of +60°C

RS PRO Datasheet
