RS PRO CVPU Non Return Valve, 6mm Tube Inlet, 6mm Tube Outlet, 0 → 10bar, Клапан

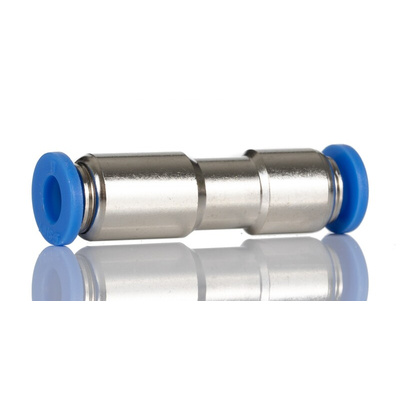

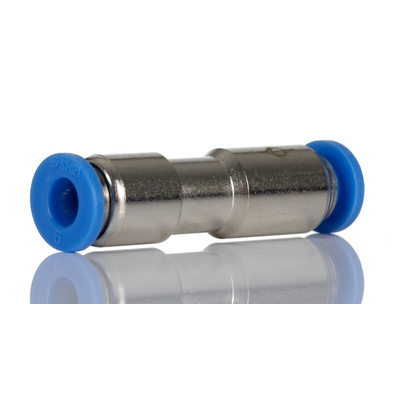

RS PRO CVPU Non Return Valve, 6 mm Tube Inlet, 6 mm Tube Outlet, 0 → 10 bar

Protect and maintain vacuum lines with this non-return valve from the tried and tested RS PRO range. The valve allows compressed air to flow from one side while blocking the inverse flow.

The fitting's push-on and screw collar makes it easy to fit to either nylon or polyurethane low-pressure piping. It has a 6 mm outlet and an inlet of the same size. It's suitable for use with air and has a working pressure range of -1 to +15 bar.

With a body made from polyoxymethylene plastic (POM), the valve is a precision part boasting a high level of stiffness, low friction and very good dimensional stability.

Valves of this kind are found in a range of vacuum systems. These are used in a wide variety of settings, including the medical sector, food technology and for coating architectural glass.

Features and Benefits

• Non-return valve
• Tube connection type, which can be easily fitted with a push-on and screw collar
• Polyoxymethylene body offers high stiffness and dimensional stability with low friction
• Tube inlet connection of 6 mm
• Tube outlet connection of 6 mm
• Working pressure range of 0 to +10 bar
• Operating temperature range of 0˚C to +60˚C
• Manufacturer series CVPU
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
