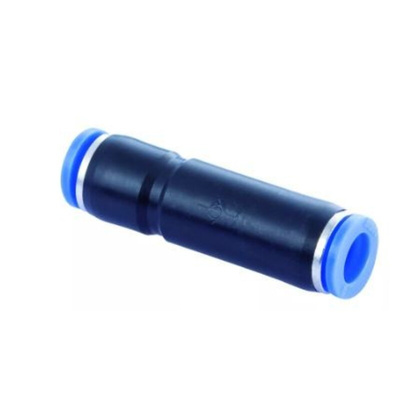

RS PRO CVPU Non Return Valve, 8mm Tube Inlet, 8mm Tube Outlet, 0 → 10bar, Клапан

RS PRO CVPU Non Return Valve, 8 mm Tube Inlet, 8 mm Tube Outlet, 0 → 10 bar

Do you work with vacuum lines? This non-return valve from RS PRO allows you to control the flow of compressed air, so it flows from one side while blocking passage in the opposite direction.

The valve has a simple yet effective push-on and screw collar that can be fitted to both nylon and polyurethane low-pressure piping with the minimum of effort. Both inlet and outlet connection measure 8 mm, and the fitting has an operating pressure range between -1 and +15 bar.

The valve's body is made from strong polyoxymethylene (POM), which is a type of plastic that gives a high level of stiffness as well as dimensional stability and low friction. Valves of this type can be used in a wide range of vacuum and general-purpose applications, including the food and beverage industry and the medical sector.

Features and Benefits

• Non-return valve
• Tube connection type, which can be easily fitted with a push-on and screw collar
• Polyoxymethylene body offers high stiffness and dimensional stability with low friction
• Tube inlet connection of 8 mm
• Tube outlet connection of 8 mm
• Operating pressure range of 0 to +10 bar
• Maximum operating pressure of 10 bar
• Operating temperature range of 0˚C to +60˚C
• Manufacturer series CVPU
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
