RS PRO Rotary Knob Pneumatic Manual Control Valve HVFF Series, 10mm, Клапан

9160971
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
2289.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

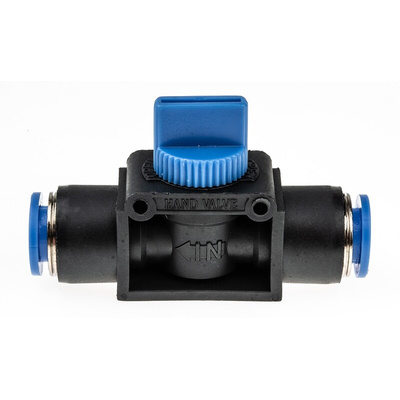

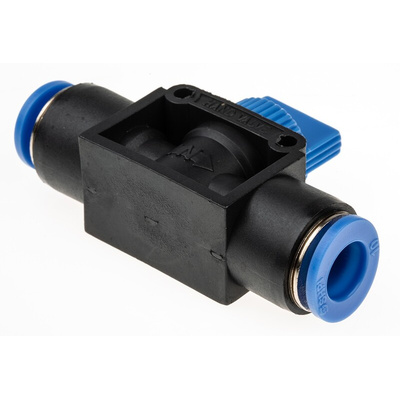

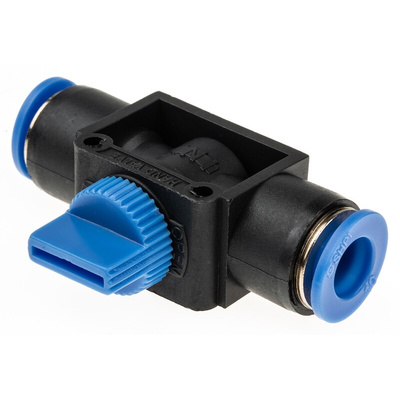

RS PRO Rotary Knob Pneumatic Manual Control Valve HVFF Series

Using devices such as drills or sprayers? The RS PRO pneumatic manual control valve is a reliable choice when you need to turn the air pressure on and off. It's commonly used in equipment such as ventilators, drills or paint sprayers.

There are two ports and two positions on the valve and it's controlled by a blue rotary knob. The valve body is made from durable polyoxymethylene and has a thread size of 6 mm. It's safe to use with both polyurethane and nylon tubing up to a working pressure of 10 bar and has an operating temperature of 0°C to +60°C. Its screw-collar and push-on design guarantees a secure connection, making it especially useful for use with vacuum, instrumentation and general-purpose applications.

The control valve's design allows safe maintenance of your device once you've removed the remaining pressure. You'll find these frequently used in the construction and medical sectors.

Features and Benefits

• Highly durable POM (polyoxymethylene) body material
• Blue control switch
• Maximum operating pressure of 10 bar
• HVFF manufacturer series
• Two ports
• Minimum operating temperature of 0°C
• Maximum operating temperature of +60°C
• Two positions
• Rotary knob control mechanism

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS Pro Datasheet
Давление - максимальное рабочее:
10 bars
Количество позиций:
2
Количество портов:
2
Корпус - материал:
Полиоксиметилен
Механизм управления:
Rotary Knob
Производитель - серия:
HVFF
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
0°C
Размер резьбы:
10мм
Цвет кнопки управления/переключателя:
Голубой
