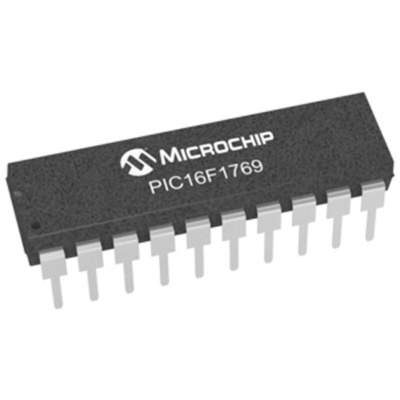

Microchip PIC16F1769-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 14 kB Flash, 20-Pin PDIP, Микроконтроллер

PIC16F1764/1765/1768/1769 8-Bit Flash Microcontrollers

The PIC16F176x family of Microcontrollers are peripheral rich MCUs based upon Microchip’s Enhanced Mid-Range Core designed for a variety of functions. These devices offer the capability of connecting the on-board peripherals internally to create closed loop systems without the need to use pins or any additional PCB area.

Microcontroller Features

8 MIPS Max. CPU Speed
Enhanced Mid-range Core with 49 Instructions, 16 Stack Levels
Low-Current Power-on Reset (POR)
Configurable Power-up Timer (PWRT)
Brown-out Reset (BOR) with Selectable Trip Point
Extend Watchdog Timer (EWDT)
eXtreme Low-Power (XLP) features
Precision Internal Oscillator

Analogue Peripherals

10-Bit Analogue-to-Digital Converter (ADC) – 8 or 12 channels depending on model
Operational Amplifiers – 1 or 2 depending on model
High-Speed Comparators – 2 or 4 depending on model
Digital-to-Analogue Converters (DAC) – 2 or 4 depending on model
Voltage Reference
Zero-Cross Detector (ZCD)
Programmable Ramp Generators (PRG) – 1 or 2 depending on model
Two High-Current Drive I/Os - up to 100 mA sink or source @ 5V

Digital Peripherals

Three Configurable Logic Cells (CLC) - integrated combinational and state logic
Complementary Output Generators (COG) – 1 or 2 depending on model
Capture/Compare/PWM (CCP) Modules – 1 or 2 depending on model
Pulse-Width Modulator (PWM) – 2 or 4 depending on model
Data Signal Modulators (DSM) – 1 or 2 depending on model
Peripheral Pin Select (PPS)
Serial Communications - Enhanced USART (EUSART), SPI, I2C™, RS-232, RS-485, LIN compatible
