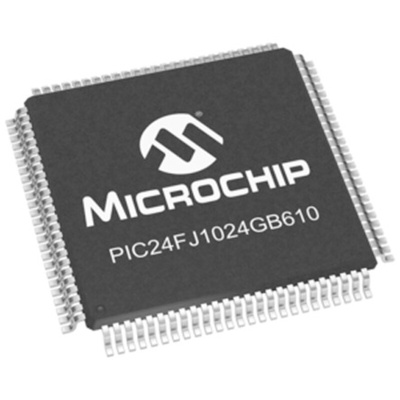

Microchip PIC24FJ1024GB610-I/PT, 16bit PIC Microcontroller, PIC24F, 32MHz, 1.024 MB Flash, 100-Pin TQFP, Микроконтроллер

PIC24FJxxxGA610/GB610 16-Bit Microcontrollers

The Microchip PIC24FJxxxGA610/GB610 family of Microcontrollers are peripheral rich 16-bit devices that lend themselves to applications that require a large amount of memory.

Of particular note is the Dual Partition Flash with Live Update Capability that allows the MCU to hold two independent software applications (including boot loader). Furthermore this functionality allows the simultaneous programming of one partition while executing application code from the other.

Microcontroller Features

Modified Harvard Architecture
Up to 16 MIPS Operation @ 32 MHz
17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
32-Bit by 16-Bit Hardware Divider
16 x 16-Bit Working Register Array
In-Circuit Serial Programming (ICSP)
In-Circuit Emulation (ICE)
Peripheral Pin Select (PPS)
Power-on Reset (POR) and Brown-out Reset (BOR)
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Programmable High/Low-Voltage Detect (HLVD)
Flexible Watchdog Timer (WDT)

Dual Partition Flash Features

Capable of Holding Two Independent Software Applications, Including Boot Loader
Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
Allows Run-Time Switching Between Active Partitions

eXtreme Low-Power (XLP) Features

Sleep and Idle modes to Selectively Shut-Down Peripherals and/or Core
Doze mode to allow the CPU to Run at a Lower Clock Speed than Peripherals
Alternate Clock Modes for On-the-Fly Switching to Lower Clock Speeds
Wide Range Digitally Controlled Oscillator (DCO) for Fast Start-up and Low-Power Operation

Peripheral Features

10/12-Bit 200/500 ksps Analogue-to-Digital Converter (ADC) Converter – 24 Channels
Three Enhanced Analogue Comparators
Charge Time Measurement Unit (CTMU) for Capacitive Touch Sensing
Up to Five External Interrupt Sources
Peripheral Pin Select (PPS)
Eight-Channel Direct Memory Access (DMA)
Five 16-Bit Timers/Counters with Prescalers - Can be paired as 32-bit timers/counters
Six Input Capture modules, each with a Dedicated 16-Bit Timer
Six Output Compare/PWM modules, each with a Dedicated 16-Bit Timer
Four Single Output CCPs (SCCP) and Three Multiple Output CCPs (MCCP) Modules
Enhanced Parallel Master/Slave Port (EPMP/EPSP)
Hardware Real-Time Clock/Calendar (RTCC)
USB v2.0 On-The-Go (OTG) Compliant Module – PIC24xxxGB610 models only
Three 3-Wire/4-Wire SPI modules
Three I2C Modules
Six UART Modules
Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
Four Configurable Logic Cells (CLCs)

PIC24F 16-bit Microcontroller featuring up to 256KB of ECC Flash, 16KB of RAM and extreme Low Power. It has 12bit ADC at 200ksps with up to 14 analog inputs, 3 comparators and CTMU for touch applications.

Modified Harvard Architecture
Up to 16 MIPS Operation @ 32 MHz
8 MHz Internal Oscillator:
96 MHz PLL option
Multiple clock divide options
Fast start-up
C Compiler Optimized Instruction Set Architecture
Up to 14-Channel, Software Selectable, 10/12-Bit Analog-to-Digital Converter:
12-bit, 200K samples/second conversion rate (single Sample-and-Hold)
Sleep mode operation
Charge pump for operating at lower AVDD
Band gap reference input feature
Windowed threshold compare feature
Auto-scan feature
Three Analog Comparators with Input Multiplexing
LVD Interrupt Above/Below Programmable VLVD Level
Charge Time Measurement Unit (CTMU):
Allows measurement of capacitance and time
Operational in Sleep
Low-Power Features
