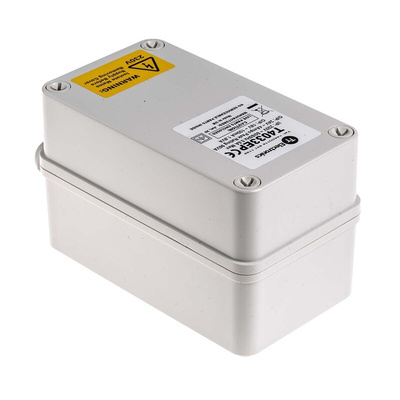

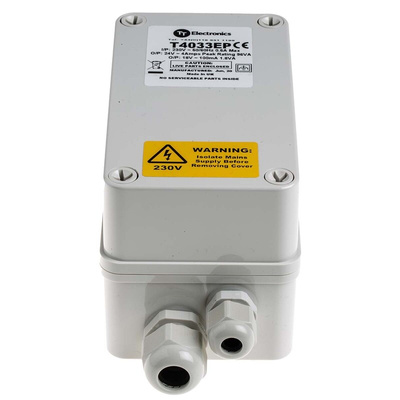

RS PRO Enclosed Linear Power Supply, 230V ac Input, 24V ac Output, 4A Output, 96VA, Источник питания

RS PRO Embedded Linear Power Supply Enclosed, 230 V AC Input, 24 V AC Output, 4 A, 96 VA

If you're looking for a power supply that will stand up to the worst the elements can throw at it, this embedded linear power supply from RS PRO offers a durable and easy-to-install option.

The robust wall-mounting device is housed in an IP66-rated enclosure, meaning it's dust tight and offers protection against high-powered jets of water. It comes equipped with a range of safety features such as protection against over-voltage, over-temperature and short-circuiting. The intuitive wiring system means it's easily replaced, although with a mean time before failure of 50,000 hours, that's not something you should need to do often.

The power supply has been exhaustively tested against a range of international standards. It meets CE and EMC safety standards and is rated CEC level V for efficiency. This type of linear power supply is suitable for outdoor use in applications including signal processes and communications equipment.

Features and Benefits

• Embedded linear power supply
• Enclosed wall mount
• IP66-rated as dust tight and resistant to powerful water jets
• Power rating of 96 VA
• Input voltage of 230 V AC
• Output current of 4 A
• Output voltage of 24 V AC
• Depth of 89.9 mm
• Width of 122.2 mm
• Length of 187.2 mm
• Maximum operating temperature of +40°C
• Minimum operating temperature of 0°C
• Mean time between failures of 50,000 hours
• Weight of less than 1.5 kg
• IP66-rated (dust tight, protected against high-powered jets of water)
• Conforms to CE and EMC safety standards
• CEC rating of level V for efficiency
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet

Power Supplies Guide EN
