Infineon XMC4800 Relax EtherCAT MCU Evaluation Board Evaluation Kit KITXMC48RELAXECATV1TOB01

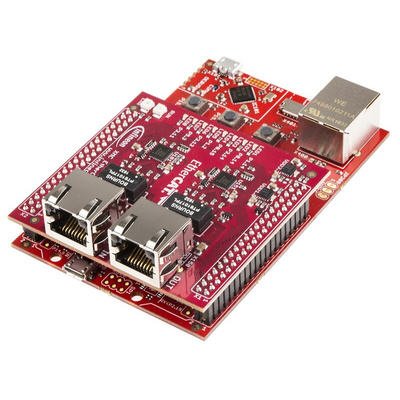

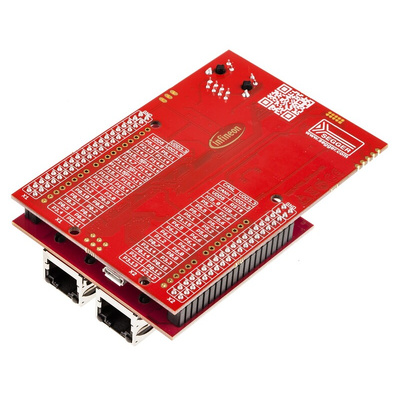

XMC4800 Relax EtherCAT MCU Evaluation Kit

Infineon technologies XMC4800 Relax EtherCAT^® Kit is an evaluation kit for the XMC4800 Microcontroller. The XMC4800 family of MCU integrates the EtherCAT^® node on an ARM^® Cortex^®M processor with on-chip flash and analogue/mixed signal abilities. The EtherCAT kit allows you to run an embedded web server and store your HTML web pages on a microSD card. As well as controlling the XMC4800 MCU on your PC via the web browser. The development kit is for EtherCAT slave devices and is ideal for the developing EtherCAT^® slaves such as servo drives and intelligent I/O devices.

XMC4800 Relax EtherCAT^® Kit
ARM^® Cortex^® M4 Microcontroller
No additional components are required
EtherCAT^® ASIC, external memory or a quartz clock generator
EtherCAT^® slave controller on-chip
XMC4800 (pin compatible to XMC4700)
On-board Ethernet TCP/IP
CAN node
SD/MMC card slot
Quad SPI flash
RTC Crystal
Physical layer for the EtherCAT^® communication realised via the XMC^™ EtherCAT^® PHY board add-on
Top-mounted XMC EtherCAT^® Phy Board
Arduino™ compatible connector for 3.3 V Arduino shields

Other Relax Products Available
XMC4700 Relax Kit – 917-0735
XMC4700 Relax Lite – 917-0739
XMC4700 Relax for 5 V Shields – 917-0748
