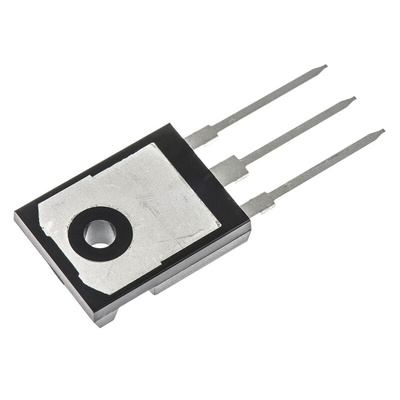

N-Channel MOSFET, 34 A, 650 V, 3-Pin TO-247 IXYS IXFH34N65X2, МОП-транзистор

N-channel Power MOSFET, IXYS HiPerFET™ X2 Series

The IXYS X2 class HiPerFET Power MOSFET series offers significantly reduced on resistance and gate charge when compared to earlier generations of power MOSFETs resulting in reduced losses and higher operational efficiency. These rugged devices incorporate an enhanced high-speed intrinsic diode and are suitable for both hard switching and resonant mode applications. X2 class Power MOSFETs are available in a variety of industry-standard packages including isolated types, with ratings of up to 120A at 650V. Typical applications include DC-DC converters, AC and DC motor drives, switch-mode and resonant-mode power supplies, DC Choppers, Solar inverters, temperature and lighting control.

Very low RDS(on) and QG (gate charge)
Fast intrinsic rectifier diode
Low intrinsic gate resistance
Low package inductance
Industry standard packages

MOSFET Transistors, IXYS

A wide range of advanced discrete Power MOSFET devices from IXYS

N-ch X2-Class HiPerFET Power MOSFET
