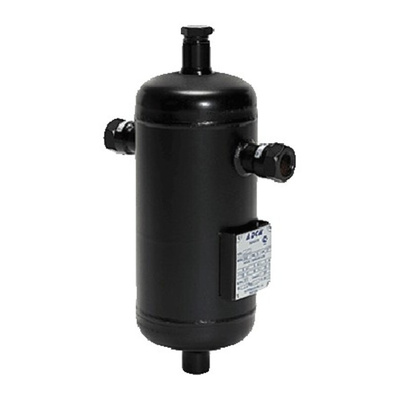

Vertical Steam Separator S16/S

Vertical steam separator for the removal of moisture from steam and compressed air pipelines. Particles with heavier specific gravity, such as water and oil droplets, are separated from the steam and compressed air by centrifugal forces.
The condensate collects at the bottom of the separator and can be drained using a suitable steam or compressed air trap.

Features and Benefits

•Several possibilities of installation
•No moving parts
•Carbon steel body

Application Information

For use with steam, compressed air and other gases.

Materials

Body – EN10216-2/P235GH/1.0325
Heads – En10028-2/P265GH/1.0425
Inlet/Outlet Pipes – EN10216-2/P235GH/1.0325
Sockets Inlet/Outlet – ASTM A/105/1.0432
Sockets – ASTM A105/1.0432
Internals – EN10025-2/S235JR/1.0038

Standards

This product has been designed for use on water, steam and other gases which are in group 2 of the PED-European Equipment Directive 97/23/EC

Steam Separators

Datasheet
