551274, Valsteam ADCA 10 bar SG Iron Thermostatic Steam Trap Set, Конденсатоотводчик

9171895
Номер производителя: 551274Производитель: Valsteam ADCA
Цена за шт.
143385.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Trap Set with GV32B, IS140, RT25 and FLT17LC

Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermostatic steam trap.

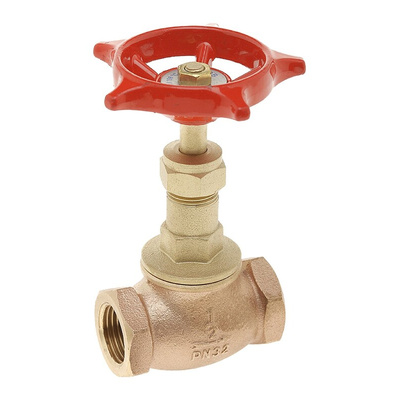

Bronze Globe Valve GV32B

GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing.

•Female screwed ISO7/1Rp (BS21)
•Body design conditions PN32
•198°C at 14 bar
•100°C at 32 bar

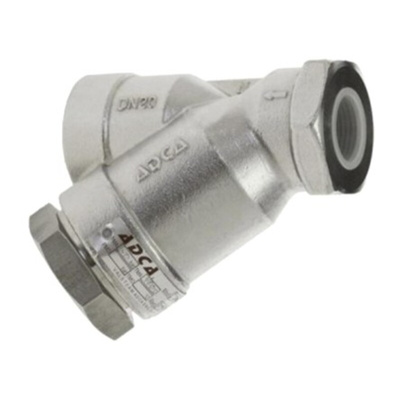

Y Strainers IS140

The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt.

•Female screwed ISO7/1Rp (BS21)
•Horizontal or vertical downstream installation

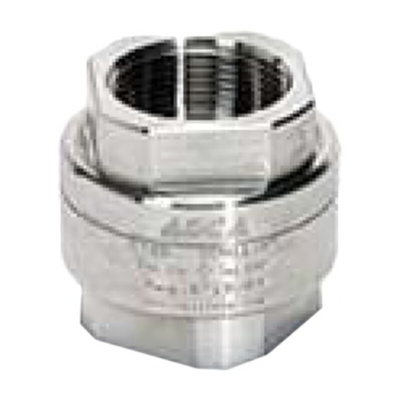

Non-Return Valve RT25

The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate.

•Female screwed ISO7/1Rp (BS21)
•Low-pressure drop
•Horizontal or vertical installation

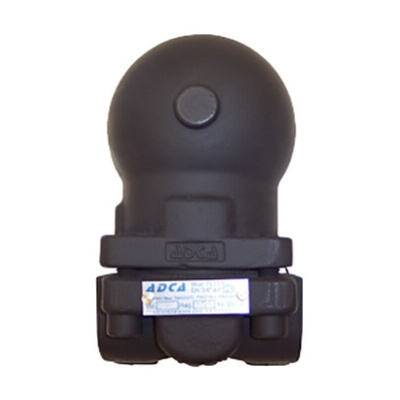

Float & Thermostatic Steam Trap FLT17LC

The FLT17LC float and thermostatic steam trap is designed for high and low-pressure steam heating and process equipment.

•Modulating discharge
•Discharges condensate at steam temperature
•Unaffected by pressure changes
•Excellent air discharge
•Female screwed ISO7/1Rp (BS21)
•Standard horizontal installation from right to left
•DN 1/2” to DN 3/4” – DN15 to DN20

Application Information

For use with saturated steam, condensate, compressed air, water, oil and other fluids.

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfDatasheet
pdfDatasheet
Корпус - материал:
SG Железо
Максимальное рабочее давление:
10 бар
Ориентация:
Горизонтальный, Вертикальный
Подключение тип:
Female
Тип ловушки:
Thermostatic
Уплотняющий материал:
Нержавеющая сталь
