551278, Valsteam ADCA 40 bar Thermodynamic Steam Trap Set, Конденсатоотводчик

Trap Set with GV32B, IS140, RT25 and DT42S

Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermodynamic steam trap.

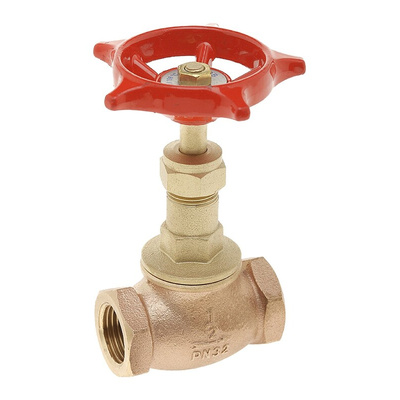

Bronze Globe Valve GV32B

GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing.

•Female screwed ISO7/1Rp (BS21)
•Body design conditions PN32
•198°C at 14 bar
•100°C at 32 bar

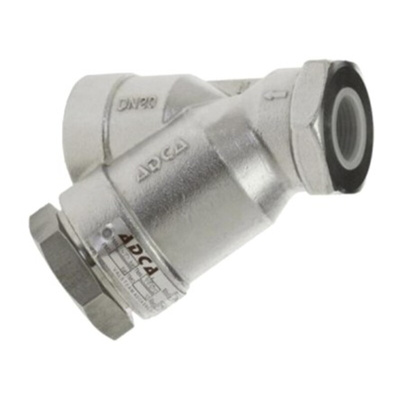

Y Strainers IS140

The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt.

•Female screwed ISO7/1Rp (BS21)
•Horizontal or vertical downstream installation

Non-Return Valve RT25

The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate.

•Female screwed ISO7/1Rp (BS21)
•Low-pressure drop
•Horizontal or vertical installation

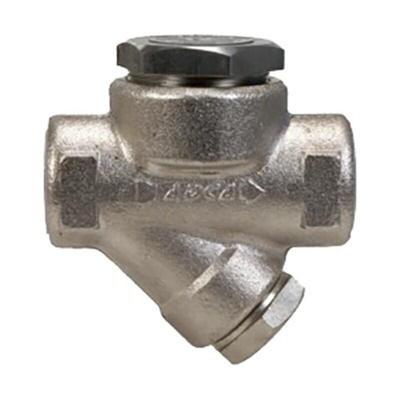

Thermodynamic Steam Trap DT42S

The DT42S thermodynamic steam trap is compact, lightweight and easy to install. They are an excellent choice for high pressure systems including steam tracing applications.

•Operates on superheated steam
•Seat and disc can easily be replaced
•Unaffected by waterhammer and vibrations
•Built-in easy to clean strainer
•Female screwed ISO7/1Rp (BS21)
•Flanged DIN
•Can be installed in any position

Application Information

For use with saturated steam, condensate, compressed air, water, oil and other fluids.
