Trap Set with GV32B, IS140, RT25 and FLT17HC
Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermostatic steam trap.
Bronze Globe Valve GV32B
GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing.
•Female screwed ISO7/1Rp (BS21)
•Body design conditions PN32
•198°C at 14 bar
•100°C at 32 bar
Y Strainers IS140
The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt.
•Female screwed ISO7/1Rp (BS21)
•Horizontal or vertical downstream installation

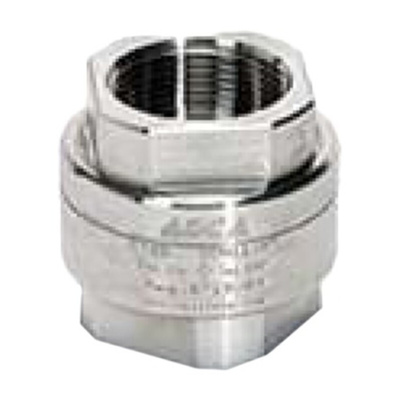

Non-Return Valve RT25
The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate.
•Female screwed ISO7/1Rp (BS21)
•Low-pressure drop
•Horizontal or vertical installation

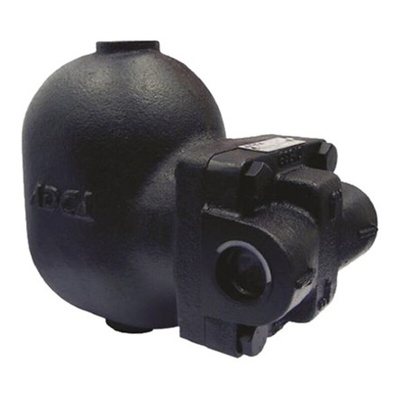

Float & Thermostatic Steam Trap FLT17LC
The FLT17HC float and thermostatic steam trap is designed for high and low-pressure steam heating and process equipment.
•Modulating discharge
•Discharges condensate at steam temperature
•Unaffected by pressure changes
•Excellent air discharge
•Female screwed ISO7/1Rp (BS21)
•Standard horizontal installation from left to right
•DN 1” HC – DN25 HC
Application Information
For use with saturated steam, condensate, compressed air, water, oil and other fluids.
