RS PRO 6m, Polyurethane Recoil Hose, with BSPT 1/4" Male connector, Трубка

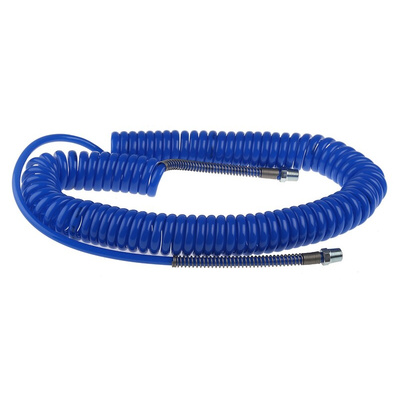

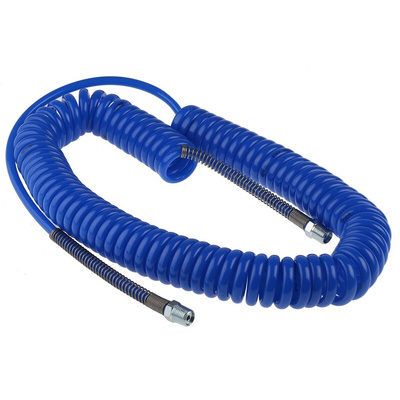

RS PRO 6 m Blue Coil Tubing with Connector, PUR, BSPT 1/4" Male

This flexible RS PRO coil tubing with connector is lightweight and designed for pressurised air devices. The compact design makes it well-suited for use in confined spaces and it has top-quality flow characteristics.

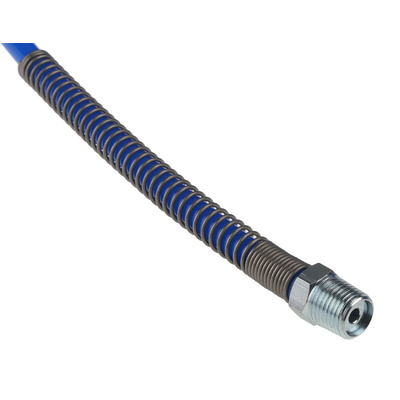

This tubing has 81 windings and extends to a maximum operating length of 6 m. The spring-backed swivel couplings on each end are 1/4-inch male BSPT (British Standard Pipe Thread) which helps the coil to twist and rotate. The part has an operating temperature of -20°C to +65°C and can function at a maximum pressure of 10 bar. Its coil is blue in colour and the PUR (polyurethane) material gives it kink and abrasion resistance. The tube has an inside diameter of 5 mm and an outside tube diameter of 8 mm.

It's manufactured to a high quality and will deliver excellent performance in a range of applications including auto-repair and robotics.

Features and Benefits

• Maximum operating pressure of 10 bar
• Maximum operating length of 6 m
• Excellent flexibility/retention, lightweight
• 81 windings
• Operating temperature range of -20°C to +65°C
• Made from PUR (polyurethane)
• Blue in colour
• BSPT 1/4" male connector

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
