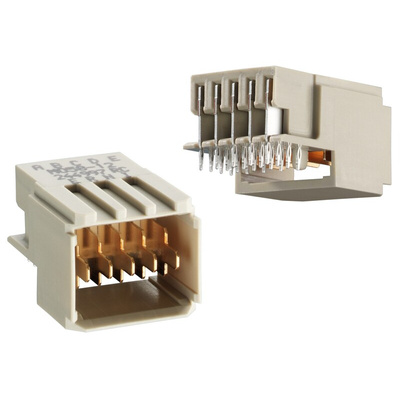

244995 / 5223995-2, ERNI, ERmet 2mm Pitch Universal Power Module Backplane Connector, Female, Vertical, 5 Column, 4 Row, 5 Way, Разъем

9175276
Номер производителя: 244995 / 5223995-2Производитель: ERNI
Цена за шт.
3416.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ERNI ERmet 2.0 mm Vertical Female Power Modules

From ERNI Electronics, a series of backplane power connectors. These vertical female universal power modules complete the ERmet 2.0 mm range. The universal power modules feature press-fit technology. Designed to supply power to applications, in line with industry standard PICMG EXP.0 and compact PCI express (5 and 7-pin versions). These power connectors are also compatible with 2.0 mm Hard Metric connectors and DIN41612 connectors. The superior quality power connectors have gold plated copper alloy contacts and a robust PBT-GF30 housing. The range includes 3, 5, 6 and 7-pin options accommodating a wide variety of current rating options. See part number 917-5223 for typical connector range.

ERNI ERmet 2.0 mm Hard Metric Connector System

Техническая спецификация
pdfERmet Power Module Vertical Female 5 way data sheet
pdfERmet Power Module- Brochure
