E878, Eclipse Pot Magnet 40mm Hole Ferrite, 9kg Pull, Магнит

Eclipse Ferrite Shallow Pot Magnet

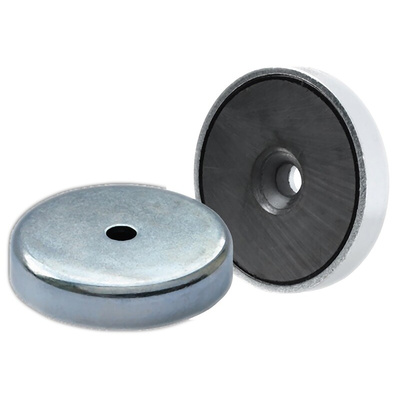

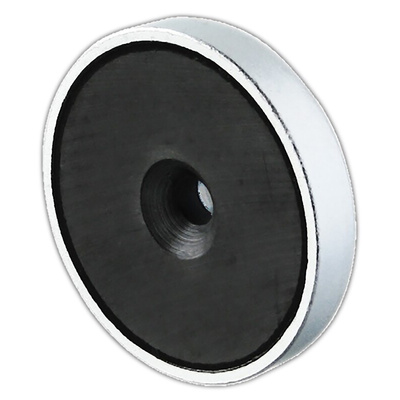

The Eclipse ferrite shallow pot magnet is a ferromagnetic steel cup into which a countersunk ring magnet is inserted and has 9kg pull force. There is a hole through the countersunk mounting pot magnet. This allows a screw head to be inserted into the magnet to screw the countersunk mounting pot magnet to any material of your choice to give a good mechanical hold. This pot magnet can be used at temperatures up to 120°C. It is a very popular pot magnet and ideal for clamping and holding applications.
Caution:
Take care not to over tighten the screw to prevent breaking the magnet material.

Features and Benefits

Height of 8mm and diameter of 40mm
Excellent resistance to corrosion
Mild steel pot with zinc plated body
Hole size is 5.5mm
M5 screw head size
Weight is 0.053kg

Applications

Assembly work
Tensioning
