RS PRO Logic Module, 110 → 240 V ac Supply, Digital, Relay Output, 8-Input, Digital Input, Логический модуль

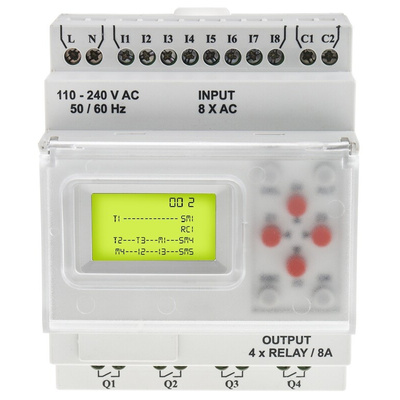

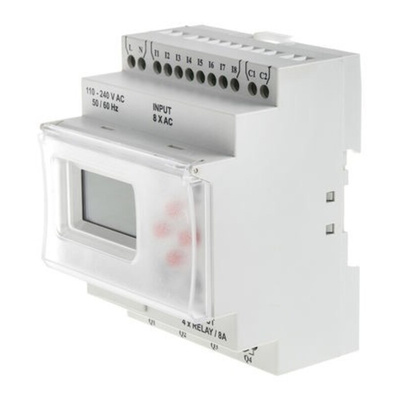

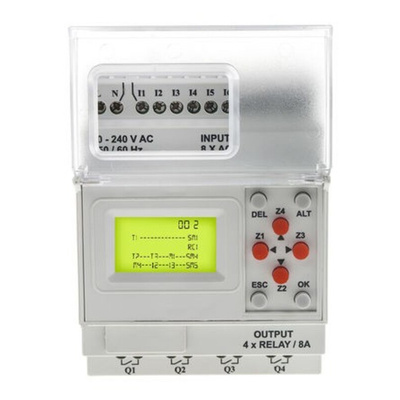

RS PRO Logic Module - 8 Inputs, 4 Outputs, Digital, Relay, Modbus Networking, Computer Interface

This logic module from RS PRO enables machines to perform functions without human intervention. This intelligent controller is mainly used with equipment that runs multiple automated processes, such as large-scale Heating, Ventilation and Air-Conditioning (HVAC) systems.
This module has a serial communication port, which reduces the number of conducting wires required to establish a connection. It also has an operating temperature range of -10°C to +55°C, so it can be used in a wide range of environments. This device has been rigorously tested for safety and quality by engineers.
The RS PRO logic module software is available as a free download at the following link:
https://auto.designspark.info/exe/RS_Logic_Module.zip

The free logic module software provides a user-friendly interface for easy programming, simulation and debugging on a PC.

Features and Benefits

• Eight inputs
• Four outputs
• Depth of 65 mm
• Length of 90 mm
• Width of 72 mm
• Operating temperature range of -10°C to +55°C
• Supply voltage of 110 V to 240 V AC
• Output current of 8 A
• Display included
• Digital input
• One serial communication port
• Program capacity of 250 lines
• Uses Ladder programming language

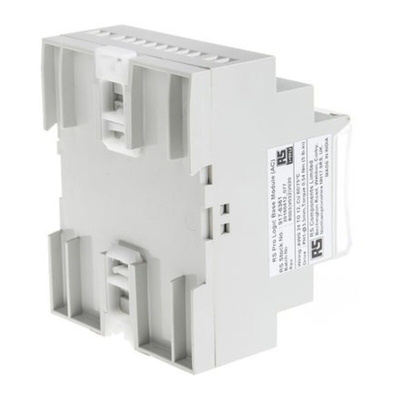

• DIN rail mounting
• Modbus network type
• Digital and relay output
• Suitable for commercial and industrial applications
• Meets the following standards: CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5 and IEC 61000-4-6
