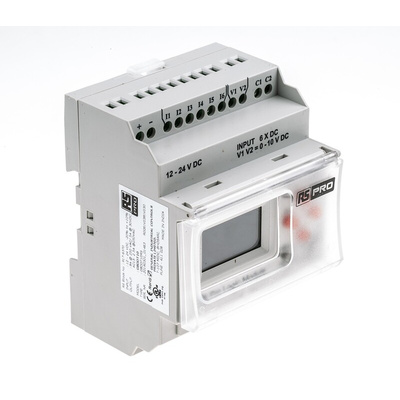

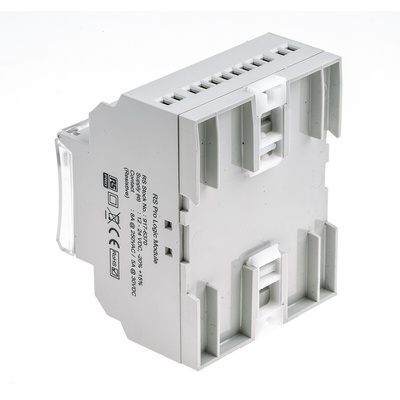

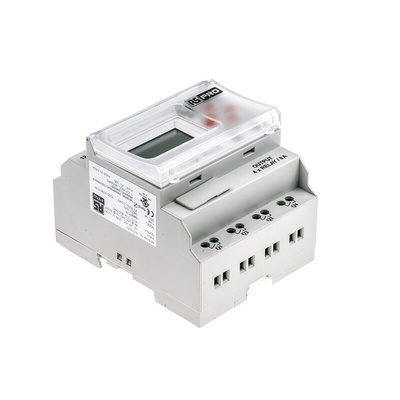

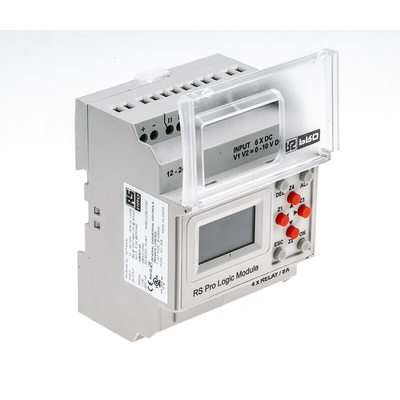

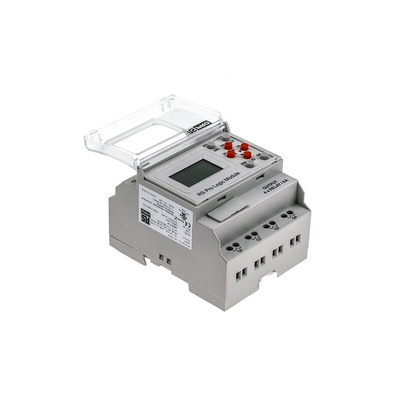

RS PRO Logic Module, 12 → 24 V dc Supply, Digital, Relay Output, 8-Input, Analogue, Digital Input, Логический модуль

RS PRO Logic Module, 12 → 24 V DC Digital, Relay, 8 x Input, 4 x Output With Display

Automate your production process with this RS PRO logic controller with relay output. This unit comes with a backlit LCD screen for display and modification of pre-selected functions, viewing input-output status and programming. The controller is designed to work with our free RS PRO Logic Module software. This is a user-friendly interface for easy programming, simulation and debugging on a PC. You can download it here.

The device uses ladder programming language and comes with a capacity of 250 lines. It has a supply voltage of 12 to 24 V DC, a current output of 8 A and will function at temperatures ranging from -10°C to +55°C.

You can mount it easily on a DIN (Deutsche Institut für Normung or German Institute of Standardisation) rail. It has screw terminations for easy installation, and a wide range of applications, from HVAC controls to baggage handling.

Software Installation Link : https://auto.designspark.info/exe/RS_Logic_Module.zip

Features and Benefits

• Logic control module
• Computer programming interface
• Operates from -10°C to +55°C
• Commercial and industrial application
• Eight inputs
• Four outputs
• ModBus network type
• Serial communication port
• Uses ladder programming language
• Programming capacity of 250 lines
• Screw termination
• One communication port
• Display included
• Supply voltage of 12 to 24 V DC
• Dimensions of (D) 65 mm x (L) 90 mm x (w) 72 mm
• Analogue and digital input type
• Digital and relay output type
• Current output of 8 A
• DIN rail mounted
• CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 compliant for safety and quality
