RS PRO Logic Module, 110 → 240 V ac Supply, Digital, Relay Output, 8-Input, Digital Input, Логический модуль

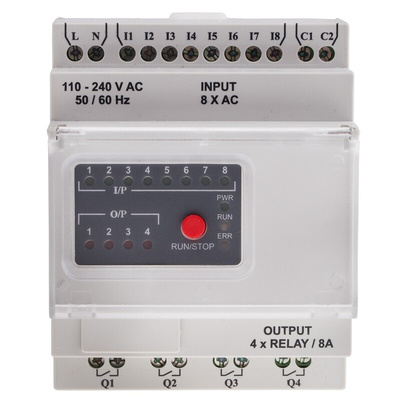

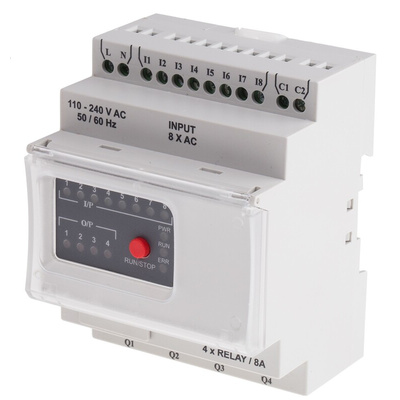

RS PRO Logic Module - 8 Inputs, 4 Outputs, Digital, Relay, ModBus Networking, Computer Interface

This logic module from RS PRO is designed to reduce the need for human intervention, allowing machines to perform functions independently. It's a good choice for use with equipment that runs multiple automated processes.
The intelligent controller needs few conducting wires to establish a connection, as it's fitted with a serial communication port. It's also suitable for use in a wide range of environments thanks to its broad operating temperature range of -10°C to +55°C.
This device has been rigorously tested for safety and quality by engineers. You'll often find it used in large-scale Heating, Ventilation and Air-Conditioning (HVAC) systems.
The RS PRO logic module software is available as a free download at the following link:
https://auto.designspark.info/exe/RS_Logic_Module.zip

The free logic module software provides a user-friendly interface for easy programming, simulation and debugging on a PC.

Features and Benefits

• Eight inputs


• Four outputs


• Depth of 65 mm


• Length of 90 mm


• Width of 72 mm


• Operating temperature range of -10°C to +55°C


• Supply voltage of 110 V to 240 V AC


• Output current of 8 A


• Display included


• Digital input


• One serial communication port


• Program capacity of 250 lines


• Uses Ladder programming language

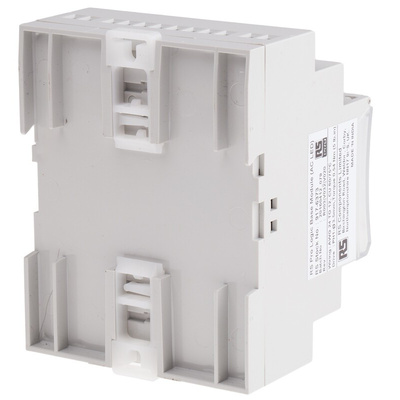

• DIN rail mounting


• ModBus network type


• Digital and relay output


• Suitable for commercial and industrial applications


• Meets the following standards: CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6

RS PRO Datasheet
