RS PRO Logic Module, 12 → 24 V dc Supply, Digital, Relay Output, 8-Input, Analogue, Digital Input, Логический модуль

RS PRO Logic Module, 12 → 24 V DC Digital, Relay, 8 x Input, 4 x Output Without Display

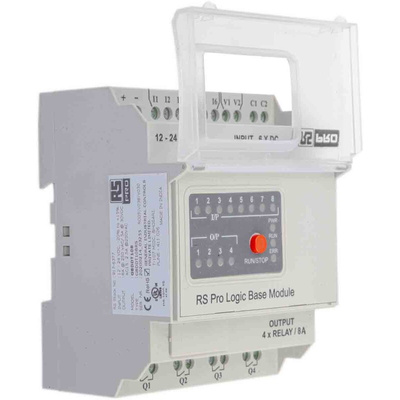

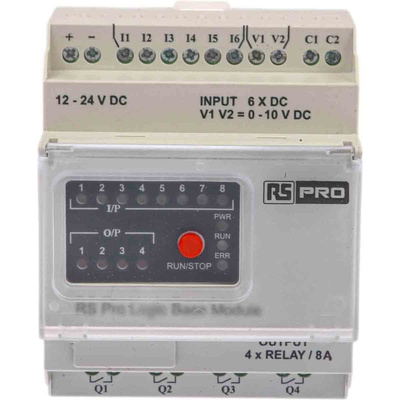

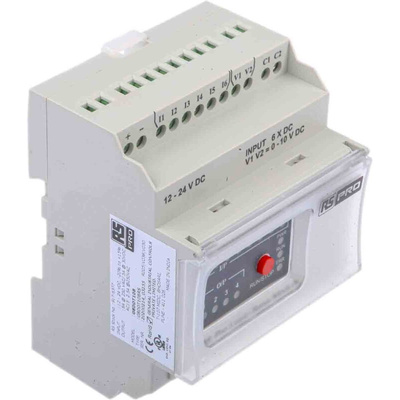

This RS PRO logic controller is designed to automate production processes. The unit features relay output and an LED display for programming functions and viewing input-output status.

The device uses a ladder programming language with a capacity of 250 lines. It's compatible with our free, user-friendly RS PRO Logic Module software, which can be downloaded for PC here and enables easy programming, simulation and debugging.

The logic module has a 12-24 V DC supply voltage with an 8 A current output and an operating temperature range of -10°C to +55°C.

The unit comes with screw terminations and will fit on any DIN (Deutsche Institut für Normung or German Institute of Standardisation) rail, so installation is easy.

You will find logic controllers like this useful for automating a variety of processes, such as baggage handling, factory production and heating, ventilation and air conditioning (HVAC).
The RS PRO logic module software is available as a free download at the following link:
https://auto.designspark.info/exe/RS_Logic_Module.zip

The free logic module software provides a user-friendly interface for easy programming, simulation and debugging on a PC.

Features and Benefits

• Logic control module
• Computer programming interface
• Operates from -10°C to +55°C
• Commercial and industrial application
• Eight inputs
• Four outputs
• ModBus network type
• Serial communication port
• Uses ladder programming language
• Programming capacity of 250 lines
• Screw termination
• One communication port
• LED display included
• Supply voltage of 12 to 24 V DC
• Dimensions of (D) 65 mm x (L) 90 mm x (w) 72 mm
• Analogue and digital input type
• Digital and relay output type
• Current output of 8 A

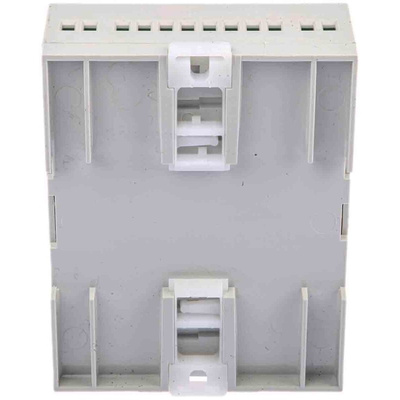

• DIN rail mounted
• CE, cULus Listed, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-29, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6 compliant for safety and quality

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
