RS PRO Communication Module for Use with RS PRO Logic Modules, 110 → 240 V ac Supply, RS485 Protocol (D-), RS485, Модуль связи

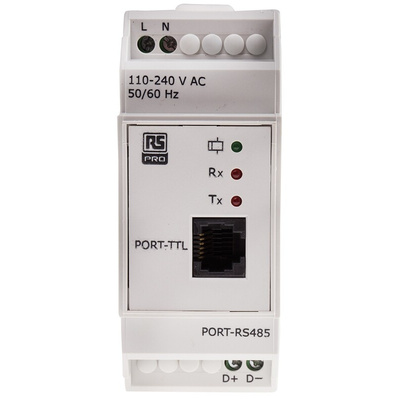

RS PRO Logic RS485 Communication Module

An RS485 communication module enabling communication between devices using the RS485 standard. The RS485 communications module provides Modbus communication and can be used to connect multiple devices making it ideal for use in automation applications in both commercial and industrial environments.
The controllers are expandable with NX-Comm RS485 Modules and suitable for use with RS PRO Logic Module 917-6361

Features and Benefits

• Input TTL Level


• Output RS485 Protocoll (2 wires)


• Baudrate up to 9600 Baud


• Modbus Communication RTU Slave


• Red LED Indicators for TX & RX Green LED power indicator

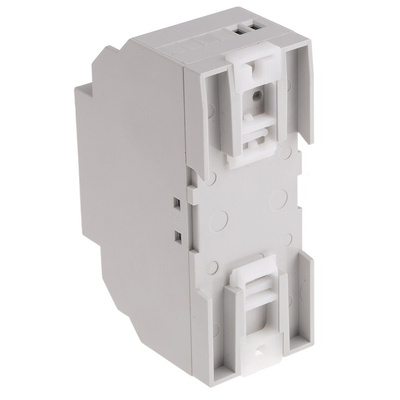

• DIN rail mounting


• Weight of 80g

Applications

• HVAC Controls


• Machine Controls involving Motor, Pump and Valve


• Vehicle Control Monitoring


• Baggage handling


• Conveyor systems and Elevators


• Exhaust and Filtering Systems


• Water-treatment plants


• Printing and Packaging Machines


• Interior and Exterior Lighting Control


• Door, Gate, Shutter, Sun blinds and Awning control


• Irrigation Control Systems


• Automation of Compressors and Pumps for Air Conditioning requirements

Software

RS Pro Logic Module software is available as a free download via the following link:
http://auto.designspark.info/exe/RS_Logic_Module.zip
The free logic module software provides a user friendly interface that allows easy programming, simulation and debugging on a PC.
