RS PRO I/O Extension Module for Use with RS PRO Logic Modules, 110 → 240 V ac Supply, Digital, Relay Output,, Модуль расширения

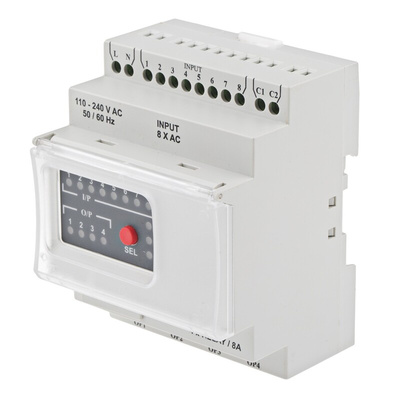

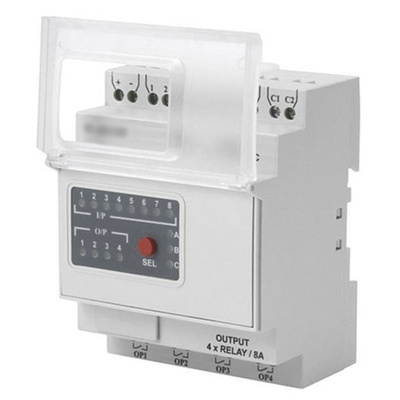

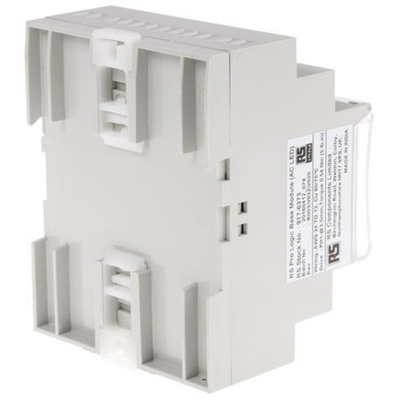

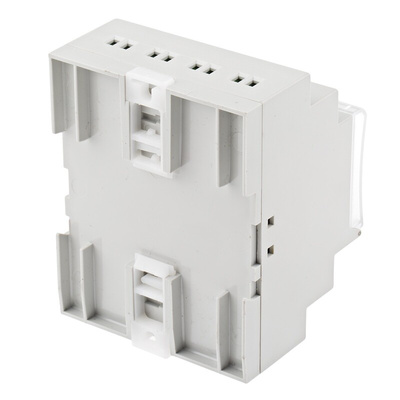

RS PRO I/O Expansion Module (8 Input/ 4 Output)

An expansion input/output (I/O) module for controlling automated processes in both industrial and commercial environments for use with RS PRO Logic Controllers
Designed for use where various types of input need to be considered such as temperature, pressure and flow rate. This module doesn't require special or complicated wiring, its quick to install and easy to manage and can expand through a daisy chain fashion to support up to 48 I/O (32 digital input and 16 relay input).
With an operating temperature range of -10°C to +55°C the I/O module is suitable for a wide range of environments, from cold storage units to power plants.

Features and Benefits

• Expansion Module with Relay Output


• 8 inputs, 4 outputs


• Maximum of 3 expansion modules on one Logic Module (48 I/O)


• DIN rail mounting

Applications

• HVAC Controls


• Machine Controls involving Motor, Pump and Valve


• Vehicle Control Monitoring


• Baggage handling


• Conveyor systems and Elevators


• Exhaust and Filtering Systems


• Water-treatment plants


• Printing and Packaging Machines


• Interior and Exterior Lighting Control


• Door, Gate, Shutter, Sun blinds and Awning control


• Irrigation Control Systems


• Automation of Compressors and Pumps for Air Conditioning requirements

Software

RS Pro Logic Module software is available as a free download via the following link:
http://auto.designspark.info/exe/RS_Logic_Module.zip
The free logic module software provides a user friendly interface that allows easy programming, simulation and debugging on a PC.

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

RS PRO Datasheet
