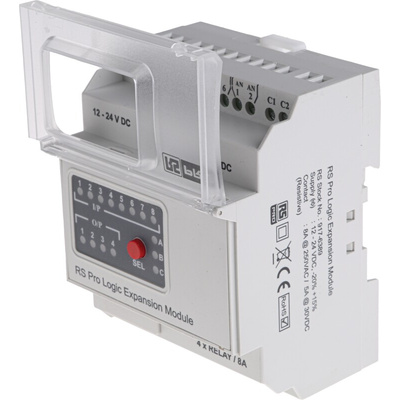

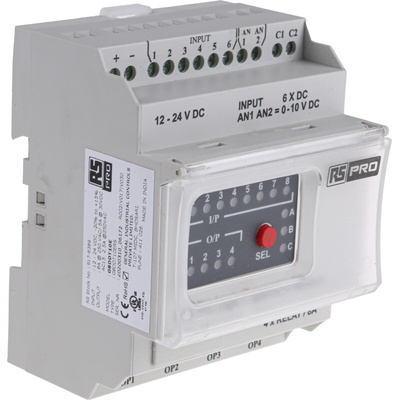

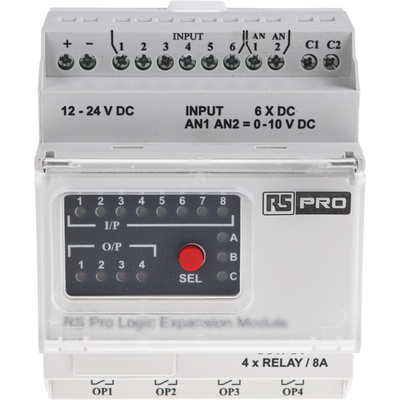

RS PRO I/O Extension Module for Use with RS PRO Logic Modules, 12 → 24 V dc Supply, Digital, Relay Output,, Модуль расширения

RS PRO I/O Module - 8 Inputs, 4 Outputs, Digital, Relay, For Use with RS PRO Logic Modules, Modbus Networking, Computer

This input/output (I/O) module from RS PRO is for controlling automated processes used in the industrial sector, such as water-treatment plants. It's ideal for any system that needs to control various types of input, such as temperature, pressure and flow rate.
This module doesn't require special or complicated wiring, making it quick to install and easy to manage. It has an operating temperature range of -10°C to +55°C, so it's suitable for many environments, from cold storage units to hot power plants. This product has been rigorously tested by engineers for quality and reliability.
The RS PRO logic module software is available as a free download at the following link:
https://auto.designspark.info/exe/RS_Logic_Module.zip

The free logic module software provides a user-friendly interface for easy programming, simulation and debugging on a PC.

Features and Benefits

• Eight inputs
• Four outputs
• Depth of 65 mm
• Length of 90 mm
• Width of 72 mm
• Operating temperature range of -10°C to +55°C
• Supply voltage of 12 V to 24 V DC
• Output current of 8 A
• Digital input
• Digital and relay output
• Single serial communication port
• Program capacity of 250 lines

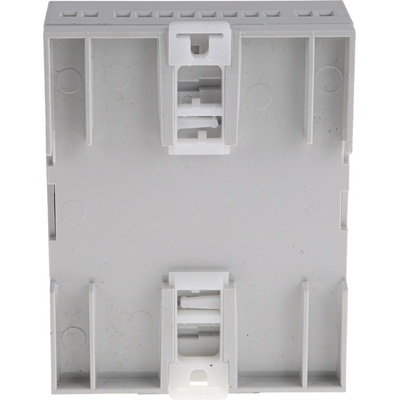

• DIN rail mounting type
• Uses Ladder programming language
• Meets CE and cULus standards
• Computer programming interface
• Modbus network type
• Suitable for commercial and industrial applications
• For use with RS PRO logic modules
• Expandable with I/O extension modules
