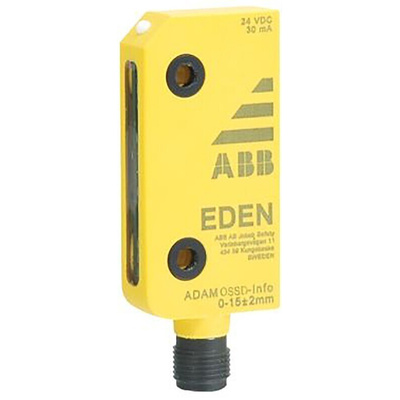

2TLA020051R5900 Adam OSSD-Reset M12-8, ABB OSSD Series Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, M12, Выключатель

ABB Eden OSSD Non Contact Safety Switches

The Eden OSSD from ABB is a coded non-contact safety switch. A PLe safety level can be achieved with only one switch per guard and with up to 30 switches connected in series. Installation time is reduced thanks to a compact design, flexible mounting and a large mounting tolerance.
The Eden OSSD increases productivity using an extensive indication and information output that enables troubleshooting and reduces downtime. It also has a large sensing distance for improved tolerance to vibrations and to minimise the risk of involuntary stops.
The safety switch has an IP69K protection class and a wide operating temperature range making it ideal for extreme environments.

Features and Benefits

Non-contact detection, 0-15 mm
OSSD outputs and inputs for serial connection
High level coded
Local reset function
Protection class IP69K

Applications

The Eden OSSD non-contact safety switch is suitable for use on doors and hatches as well as position control and sector detection.

Note

Stock nos. 917-6409 and 917-6402 have an information output and 917-6406 and 917-6415 monitor the reset function and manage the reset lamp.

Standards

IEC/EN 61508:2010 SIL3 PFHD 4.5 x 10-9, EN 62061:2005 SIL3, EN ISO 13849-1:2008 PL e/Cat. 4, EN 14119:2013 Type 4.

Approvals

CE, cULus, TUV.
