Schneider Electric Mounting Kit for use with Selector Switches and Illuminated Push Buttons, ZB5AZ026

Schneider XB5 Flush Mounting Kits

Schneider Electric XB5 Flush Mounting Kits provide a means of flush mounting Harmony XB5 series push buttons and selector switches. The flush mounting kits provide a quick and easy installation in a 30.5 mm hole, compatible with 22 mm devices.
Flush mounting kits bring a stylish aesthetic to a control panel. Also ensuring maximum safety for people and installations, as it cannot be dismantled from the front.

Quick and easy installation
Control devices and the operating modes of the machine do not change
Stylish aesthetic, bringing a new look to your control panel
Flexibility to suit a wide range of applications

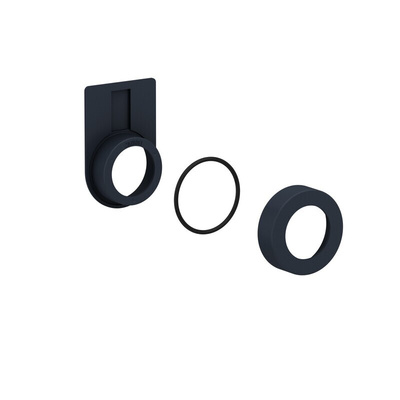

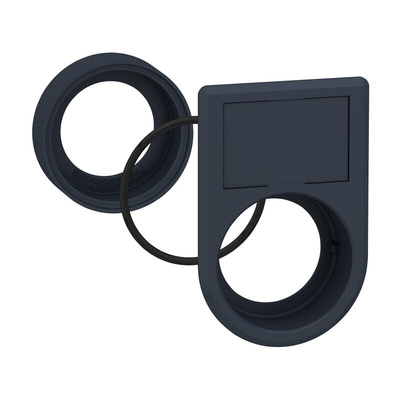

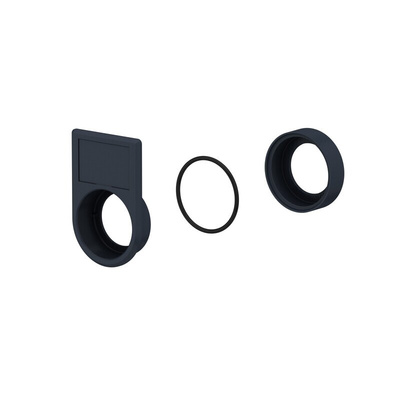

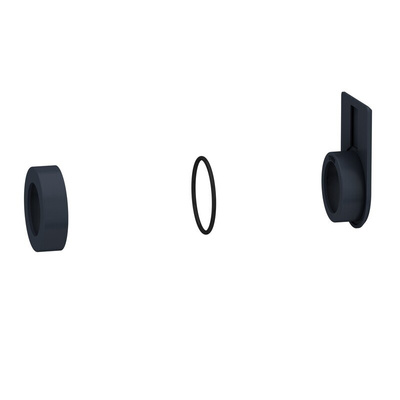

Schneider Electric Mounting Kit, For Flush Mounting Switches and Buttons, 30.5mm Cutout - Harmony XB5 Series - ZB5AZ026

When a flush fit for your ZB5 selector switches and push buttons is important, reach for this mounting kit from Schneider Electric. Made from corrosion-resistant plastic, it boosts the ruggedness of your controls. As it lines the cutout and comes with a seal, the mount helps keep out dust and water to an IP69 rating. The legend plate sits snugly around a panel hole to keep your setup neat. There are two rows of label space on the legend, so you can make it obvious what your button does and ensure control-panel functions are user-friendly.

Features & Benefits

• Free from heavy metals and mercury for workplace safety
• Clamps onto panels with a thickness of 1 to 3.5mm for flexibility

Applications

• Industrial automation
• Lifts and hoists
• Conveyors
• Plant machines

Can I fit this flush-mounting kit on a compact control panel?

Yes. To fit it, you only need a cutout diameter of 30.5mm. The total depth of the mount is 10.4mm with 7.8mm of this behind your panel. This ensures it stays flush on the outside and leaves you room for fitting your contacts at the back.
