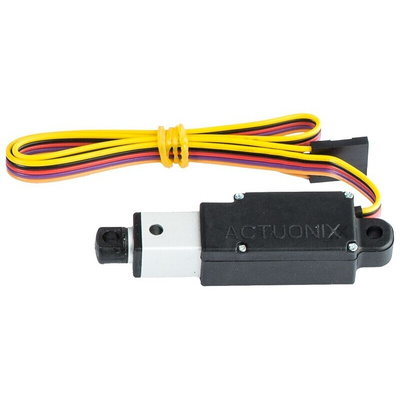

L12-10-210-12-P, Actuonix Micro Linear Actuator - L12, 20% Duty Cycle, 12V dc, 6.5mm/s, 10mm, Привод

9181322
Номер производителя: L12-10-210-12-PПроизводитель: Actuonix
Цена за шт.
45963.00 руб. (С НДС) *
Количество 5+ 10+
Цена 44124.00 руб. 42285.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

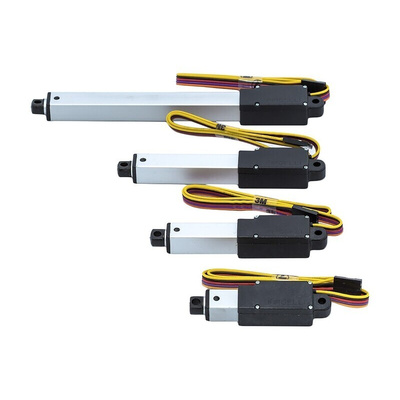

L12 Micro Linear Actuators

The L12 series miniature linear actuators from Actuonix are a unique line of actuators designed for a new generation of motion‐enabled products. Never before seen in a device of this size, these tiny linear actuators are an excellent alternative to designing with awkward gears, motors, servos and linkages. The L series of miniature linear actuators are highly flexible, configurable and compact linear motion devices with an optional sophisticated on-board microcontroller. The L12 has an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. The best feature of this actuator however is the broad spectrum of configurations that are available.

Option S – End of Stroke Limit Switches

The L12-S actuators have limit switches that turn off power to the motor when the actuator reaches within 0.5 mm of the end of stroke. The S model cannot be used with the LAC control board.

Option P – Potentiometer Position Feedback

The L12-P actuators do not have a built-in controller but do provide analogue position feedback. The L12-P actuator can be used as a linear servo by connecting to an external controller. Connect to an LAC board for easy interface with any of the following control signals: Analogue 0-5v or 4 mA to 20 mA, or digital 0-5v PWM, 1 ms to 2 ms Standard RC or USB.
Using the L12-P as a linear servo, it is able to be used in RC toys and robotics.

Features and Benefits

•Compact miniature size
•Simple control
•Low voltage
•Equal push/pull force
•Easy mounting

Application Information

Ideal for use in many applications including, robotics, consumer appliances, toys, RC vehicles, automotive and industrial automation.

Micro Linear Actuators

Техническая спецификация
pdfDatasheet
Вес:
56гр
Входное напряжение:
12В пост. тока
Максимальная длина хода:
10мм
Максимальная сила подъема:
80N
Максимальная скорость без нагрузки:
6.5mm/s
Общая длина закрытая:
152мм
Рабочий цикл:
20%
Серия:
L12
Степень защиты IP:
IP54
Управление:
P - Potentiometer Positioning Feedback
