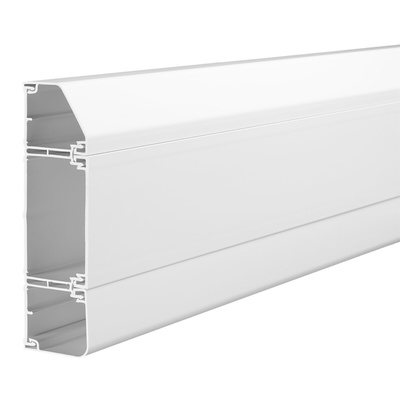

ER3W, Schneider Electric Mita White Perimeter Trunking - Closed Slot, W180 mm x D52mm, L3m, uPVC

Cableline Trunking Square (Skirting)

Installation of cables in Cableline white PVC wall mounted dado and skirting trunking is an effective means of facilitating power and communications distribution. Cableline three compartment trunking is an all insulated cable management system with each compartment having its own clip-on lid to allow for complete segregation of power, data and telecommunications circuits. This along with a dedicated selection of Fittings make it a versatile readily adaptable system to meet unusual site requirements.

Featured and Benefits

• Moulded internal and external angles are secured using concealed recessed screws
• Designed for fast and accurate fixing
• Moulded one or two gang boxes clip into the centre compartment ready to accept any leading wiring accessories
• Manufactured to BS4678: Part 4
• Dimensions: 145 x 40 mm and 3 m in length

Accessories

Selection of dedicated fittings supplied with fixings
For Socket Mounting Boxes see stock nos. 121-028, 563-680 & 563-696

Schneider Electric Cable Trunking, 3 Compartments, 87mm Front Opening - Mita Series - ER3W

Keep your workspace neat and organised with this perimeter cable trunking from Schneider Electric. It mounts simply onto a wall at dado or skirting level to tidy away cables out of sight. A trio of internal compartments provides an efficient system for bundling electric wires. This adaptable system comes with a selection of accessories – for higher density cabling, you can increase capacity with clip-on segregating components. Thanks to the unit's closed slots, your wiring's protected from damage caused by dust and debris.

Features & Benefits

• Sturdy PVC material provides a lightweight yet robust protective shield
• Internal and external angles are kept secure thanks to concealed recessed screws
• Moulded clip-in boxes are on hand to hold wiring accessories
• Straightforward screw-fixed wall mounting makes installation a breeze

Applications

• Medical facilities
• Factory floors
• Office buildings

What size is this cable trunking unit?

This cable trunking is 180 (W) x 52 (D) x 3000mm (L). As it can be cut to size, it's a good fit for large and small spaces.

What's the operating temperature range for this trunking?

This cable trunking performs reliably in ambient temperatures between -5°C and +60°C.

Catalogue

Datasheet

Product Environmental Profile

Instruction Sheet - ER3W
