RS PRO Terminal 500mA, 140V ac/dc

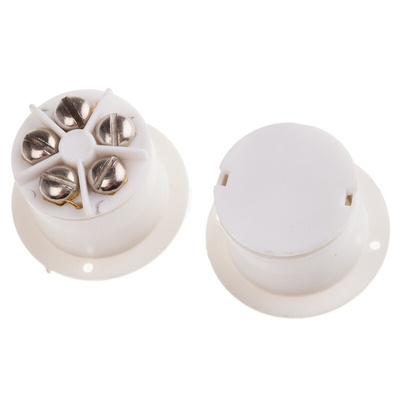

RS Pro Grade 1 Flush Alarm Contact

Terminal type flush mount switch. Proximity switches primarily designed for discrete protection of doors and windows. The switches are made of High impact Polystyrene housing material incorporating a N/O SPST magnetically operated reed switch. The permanent actuating magnet is made of a moulded construction to facilitate easy fixing. All switches have a separate terminal for maximum security as described in BS 4737.

Normally open
Grade 1
Maximum switching voltage 140 VAC/ DC
Maximum switching current 0.5 A
Maximum power 6 W/VA
Insulation resistance 100 MOhms
Contact resistance 150 mOhms
Operating distance 15mm
Operating temperature -40° to +60° C
High impact Polystyrene housing material
