RS PRO Door and Window Switch Surface Mount 500mA, 50V ac/dc

RS PRO Door and Window Switch Surface Mount 500 mA, 50 V AC/DC

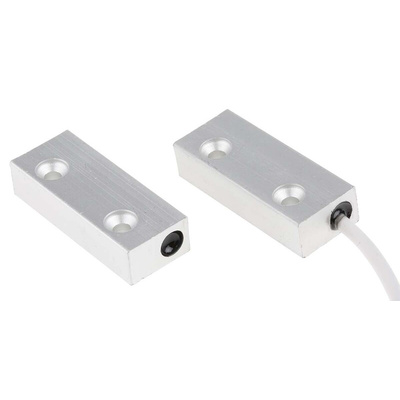

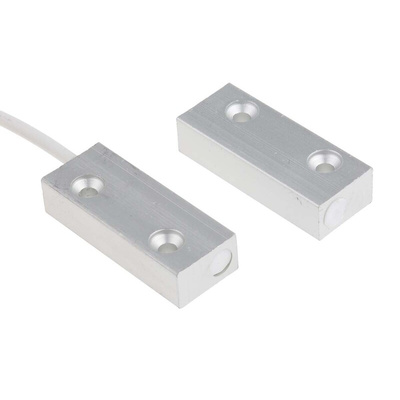

These surface mounted door and window switches from RS PRO are a practical addition to your home or business' security set-up. They're fitted with two contacts, one of which is mounted on a door or window frame and the other onto the door or window itself. Upon opening the signal between these two contacts is broken, which triggers your alarm system.

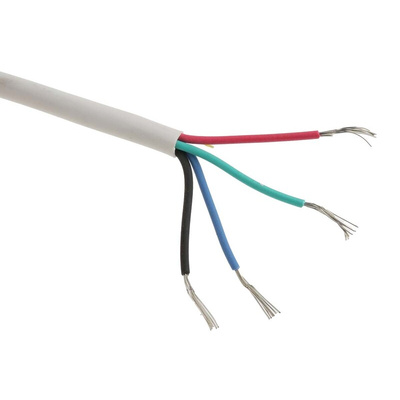

The switch comes in a lightweight, aluminium housing that's corrosion-resistant and hardwearing. It also has a broad operating temperature range, from -40°C to +85°C, thanks to its high level of thermal tolerance. A 750 mm-long cable allows the switch to be installed a little further away from your alarm or power source if necessary. The permanent actuating magnet has a moulded design that makes it easy to fit.

This quality RS PRO product is well-suited for use with both commercial and residential alarm systems.

Features and Benefits

• Door and window switch
• Surface mounted
• Switching current of 500 mA
• Switching voltage of 50 V AC/DC
• Operating gap of 15 mm
• Depth of 17 mm
• Height of 10 mm
• Width of 43 mm
• Insulation resistance of 100 M Ohms
• Operating distance of 15 mm
• Operating temperature range of -40°C to +85°C
• Housing made from aluminium
• RoHS compliant for restricted hazardous substances
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
