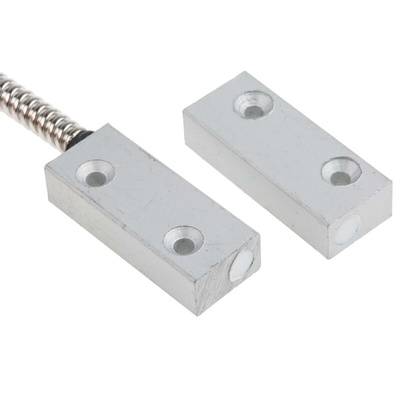

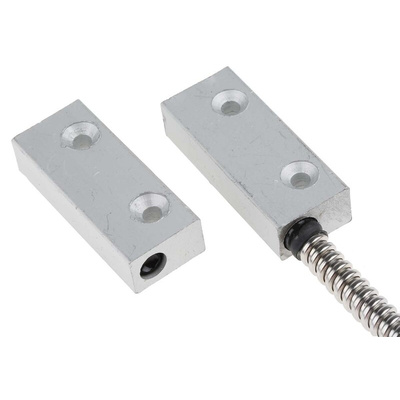

RS PRO Door and Window Switch Surface Mount 500mA, 50V ac/dc

RS PRO Door and Window Switch, Surface Mounting, 500 mA, 50 V AC/DC

This switch from RS PRO ensures that your doors and windows are closed securely at all times. It's typically used in buildings, warehouses and office spaces, along with access control systems. The alarm contact features a magnetically operated reed switch which notifies the building security system each time a window or door is operated.
The switch housing is made of aluminium, which is highly resistant to rust and corrosion and makes it suitable for installation both indoors and outdoors. The unit has been stringently tested for quality and reliability. A wide operating temperature range of -40°C to +85°C makes this part suitable for use in demanding industrial settings, from cold storage warehouses to hot factories. It complies with RoHS (Restriction of Hazardous Substances) standards, so it contains only the lowest amounts of any harmful materials.

Features and Benefits

• Depth of 17 mm
• Height of 10 mm
• Width of 43 mm
• Operating gap of 15 mm
• Surface mounting
• Switching current of 500 mA
• Switching voltage of 50 V AC/DC
