RS PRO Door Switch 500mA, 15V dc

RS Pro Grade 3 Roller Shutter Alarm Contact

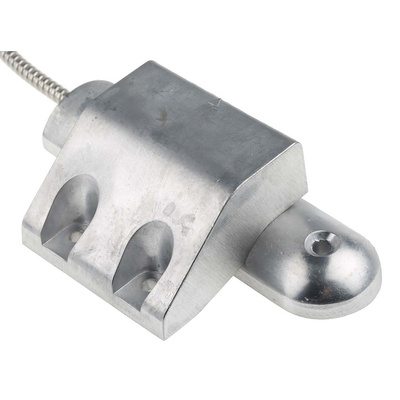

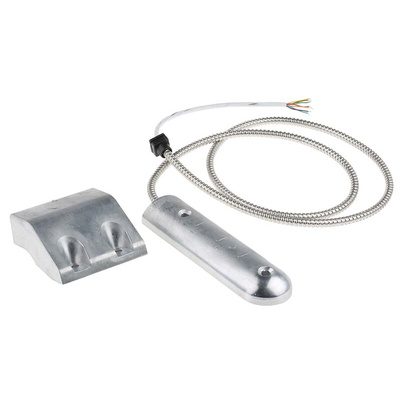

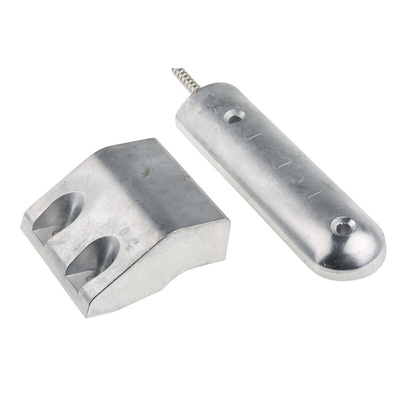

This roller shutter proximity switch of the 4-wire type incorporates a N/O SPST circuit and a separate loop for maximum security. Primarily designed for roller shutter type doors where the actuating magnet is fixed to the door. The 1 m length of 4-core cable is protected by a tough Nylon outer sleeve.

Dual contact EOL
Reed based magnetic interference protection
Maximum switching voltage 15 V DC
Maximum switching current 0.5 A
Tamper protection
Supervised EOL zone protection
35mm Operating gap

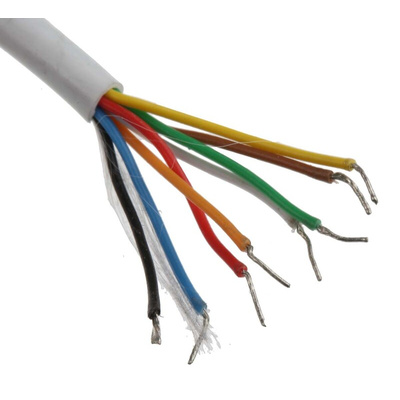

Adjustable resistance value through wire combination
Operating temperature -40° to +50° C
1 metre Armoured cable
Cast Aluminium housing
