RS PRO Motion Sensor Surface Mount

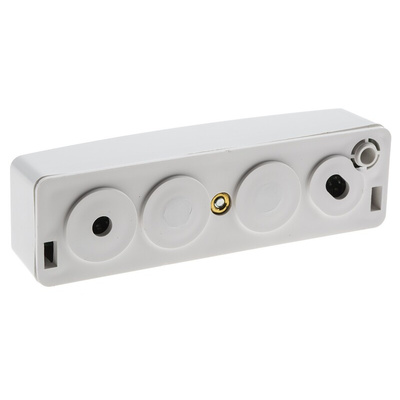

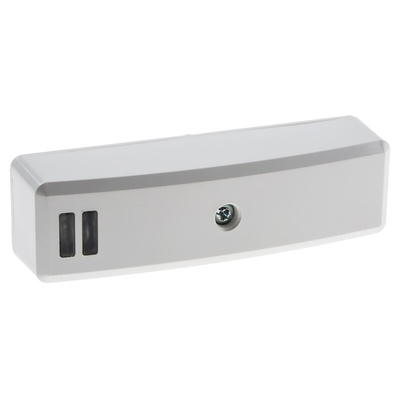

RS Pro Grade 3 Surface Mounted Motion Sensor

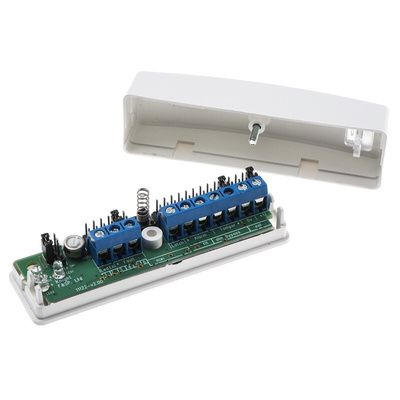

Grade 3 Motion and Shock Sensor includes an independent fault output with on-board selectable resistors for use in a triple End of Line configuration, and remote LED indication input. The detection sensitivity can be selected with a dualrange pot, and all features, including pulse count, can be locally configured with jumpers

Separate shock and or vibration sensing
Tamper switch for cover and cable entry point
Activation LED to assist setting up
Adjustable pulse count to eliminate false triggers
Grade 3
Teachable vibration and motion calibration
BS EN50131-2-6 Approved
LED status indicators
Heartbeat pulse indication showing active
Selectable resistors

Datasheet
