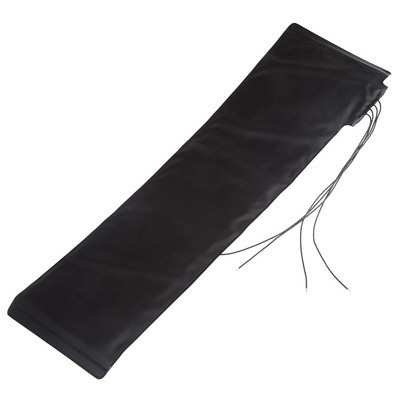

RS PRO Pressure Mat Surface Mount 250mA, 25V dc

RS PRO Pressure Mat – Surface Mount

Use this RS PRO pressure mat as a discreet way to monitor the presence of people in your workspace, this RS PRO pressure mat is an ideal solution. It's a flat pad that can be placed easily under a carpet, vinyl flooring or furniture upholstery. The sensor is triggered when a load of more than 25 kg is applied over a 50 mm² area. The mat is made of seam-welded PVC (polyvinyl chloride), so it can withstand repeated use and has a long lifespan. You can use this mat for security at the entrance to a building, to detect when furniture is occupied, and as part of an interactive multimedia installation.

Features and Benefits

• Surface mounting


• Pressure pad switch activation


• Normally Open (NO) switch configuration


• Contact Form / Style: Normally open


• Flat pad


• Sensor

Specifications

• Actuation pressure: 25Kg over 50mm2


• Maximum switching voltage: 25 V/DC


• Maximum switching current: 0.25 Amps DC (Resistive)


• Carry current Max: 0.25 Amps DC (Resistive)


• Maximum power: 10 W/VA


• Contact resistance: 1 Ohm (typical)


• Operating temperature: -10° to +70° C


• Mat Material: Seem welded PVC


• Cable: 0.22mm2 black PVC insulated


• Ingress protection: IP64 (Not waterproof)


• RoHS Compliant

Dimensions

• 595 mm x 170 mm

Applications

• Alarm systems


• Automatic door operation


• Patient bed monitoring


• Seat occupancy detection

Note

Not to be used in machine control safety applications.
